Exhaust Temperature Sensor 1/2

Courtesy of CHRYSLER GROUP, LLC

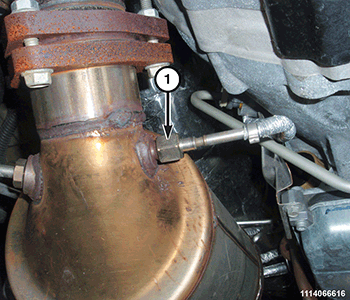

1. Install the exhaust temperature sensor (1) and tighten to 45 N.m (33 ft. lbs.).
2. Connect the exhaust temperature sensor wire harness connector.
3. Remove the support and lower the vehicle.
4. Connect the negative battery cable.
