Shield, Heat: Installation

Courtesy of CHRYSLER GROUP, LLC

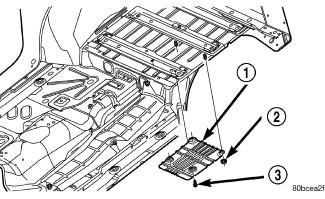

1 - MUFFLER HEAT SHIELD - REAR

2 - NUTS

3 - SELF TAPPING SCREWS

1. Position the heat shields to the floor pan or the frame and install the screws or nuts

   Courtesy of CHRYSLER GROUP, LLC

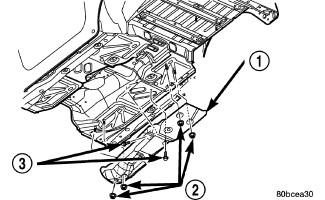

   1 - MUFFLER HEAT SHIELD - MIDDLE

   2 - NUTS

   3 - SELF TAPPING SCREWS

2. Tighten the nuts or screws to 45 N.m (33 ft. lbs.).
3. Lower the vehicle.
