Sensor, Intake Air Pressure: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Check condition of sensor O-ring.

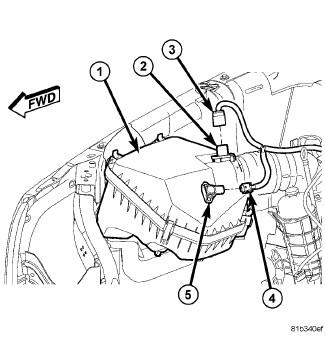

2. Install the Intake Air Pressure (IAP) sensor (5) and securely tighten fasteners.
3. Install IAP sensor wire harness connector (4).
4. Connect the negative battery cable.
