Home › Jeep › 2017 › Wrangler Rubicon, Automatic Trans › Repair and Diagnosis › Engine Performance › Ignition System (Service Information) › Sensor, Camshaft Position, 2.8L Diesel › Installation › 2.8L Diesel

2.8L Diesel

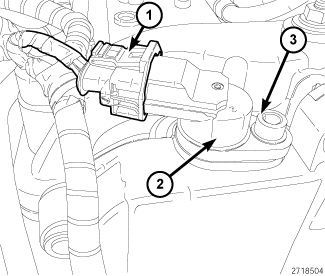

GC0102482Courtesy of CHRYSLER GROUP, LLC
  1. Install Camshaft Position (CMP) sensor (2). Tighten bolt (3) to 11 N.m (97 in. lbs.).
  2. Connect the CMP sensor wire harness connector (1).
  3. Connect the negative battery cable.
