3.6L - DTCS P0155 To P0455
›
Diagnosis And Testing
›
P0221-Throttle Position Sensor 2 Performance
›
Notes

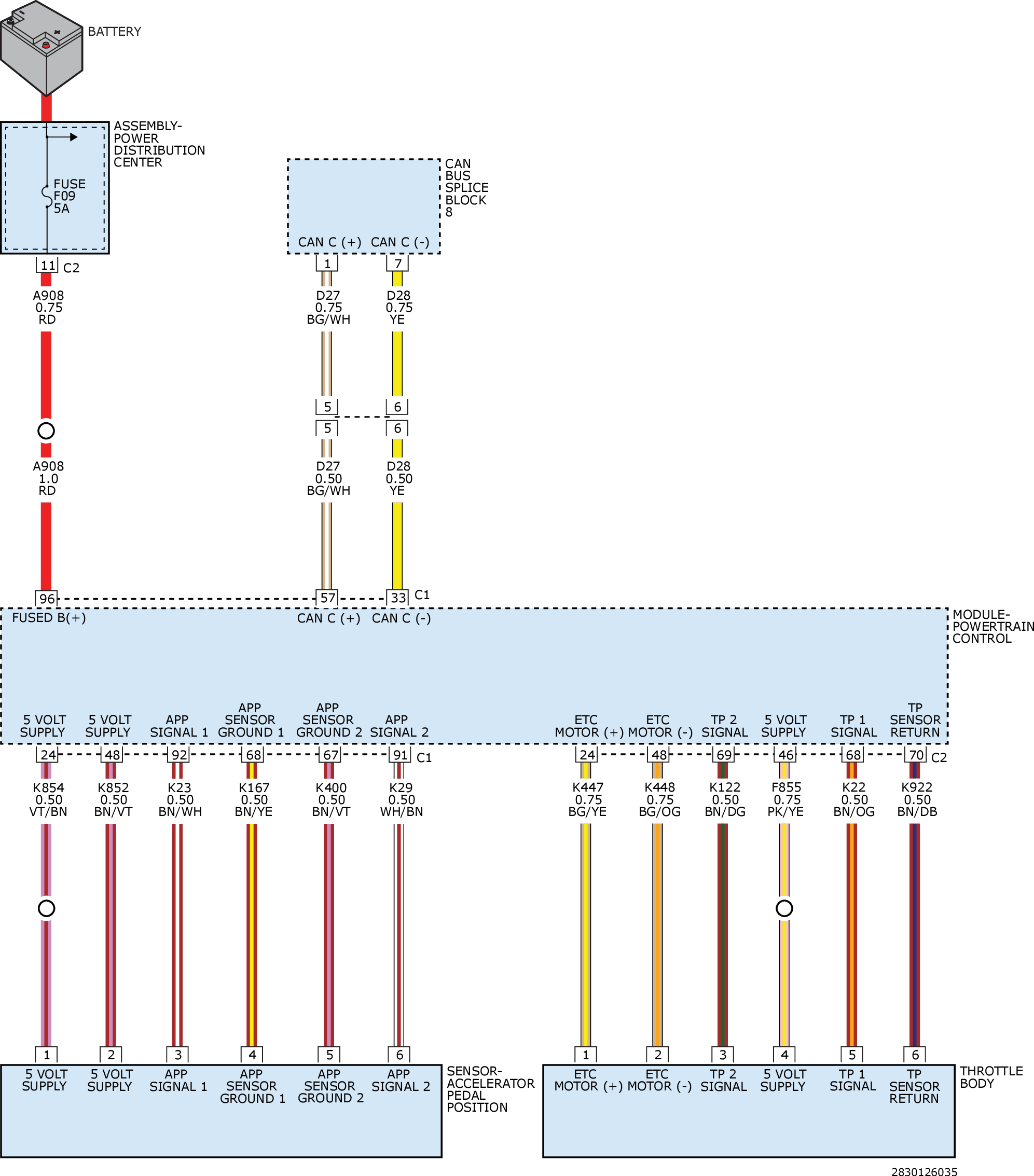

P0221-Throttle Position Sensor 2 Performance: Notes
For a complete wiring diagram,
refer to appropriate SYSTEM WIRING DIAGRAMS article
.
Courtesy of CHRYSLER GROUP, LLC
