Sensor, Fuel Tank Pressure: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the negative battery cable.
2. Remove the fuel filler cap to relieve tank pressure.
3. Raise and support the vehicle. Refer to HOISTING RECOMMENDATIONS .

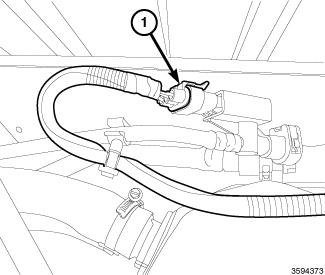

4. Disconnect the fuel tank pressure sensor electrical connector (1).

   Courtesy of CHRYSLER GROUP, LLC

5. Carefully raise the retaining tab (2), rotate and remove the fuel tank pressure sensor (1) from the fuel tank vent tube.

   Courtesy of CHRYSLER GROUP, LLC

6. The fuel tank pressure sensor seal (1) can be reused if not damaged.
