Sensor, Differential Pressure: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

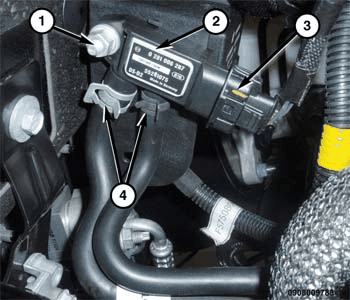

- Install the differential pressure sensor (2) and securely tighten the nut (1).
- Connect the differential pressure sensor vacuum hoses (4).
- Connect the differential pressure sensor wire harness connector (3).
- Install the engine cover. Refer to the appropriate article. .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
