Disc, Clutch: Removal
- Remove the transmission. Refer to REMOVAL .

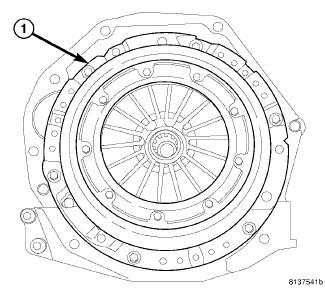

- Mark position of pressure plate (1) on flywheel with paint or a scriber for assembly reference, if clutch is not being replaced.
- Loosen pressure plate bolts evenly and in rotation to relieve spring tension and avoid warping the plate.
- Remove pressure plate bolts and pressure plate and disc.
