Switch, Clutch Starter Interlock: Installation

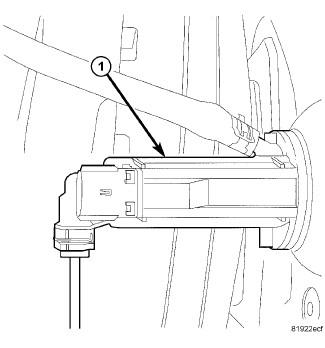

GC0085589Courtesy of CHRYSLER GROUP, LLC
  1. Snap pedal position switch (1) on clutch master cylinder.

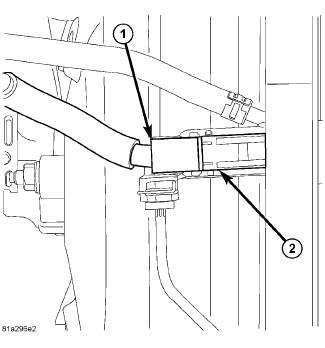

    GC0100750Courtesy of CHRYSLER GROUP, LLC
  2. Connect harness (1) to clutch pedal position switch (2).
