Removal And Installation: 1.4L

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove engine belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
3. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

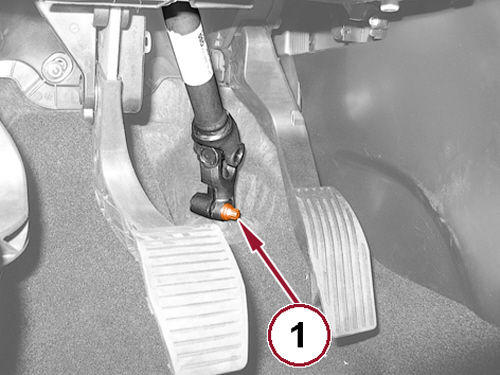

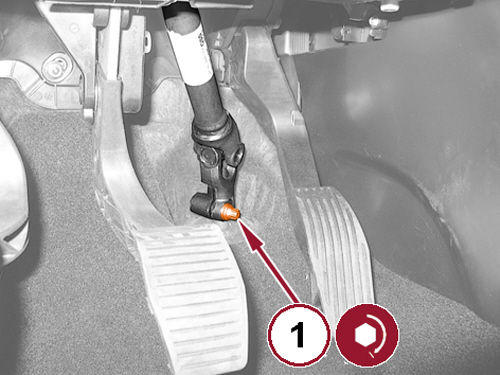

4. Remove the steering column to steering gear bolt (1).

   Courtesy of CHRYSLER GROUP, LLC

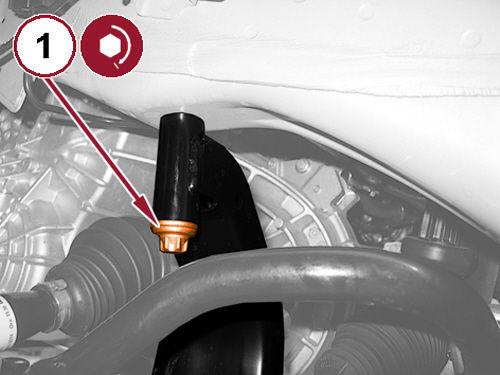

5. Remove the bolts (1) securing the right load beam extension at the front end.

   Courtesy of CHRYSLER GROUP, LLC

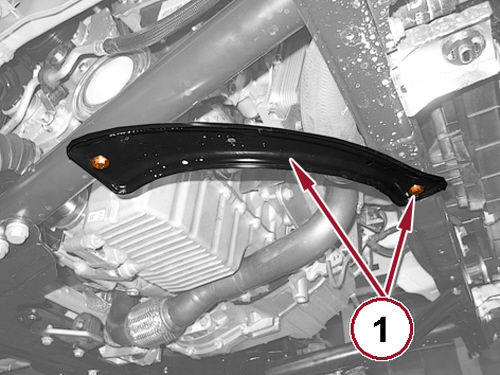

6. Remove the bolts (1) and the front-end reinforcement bracket.

   Courtesy of CHRYSLER GROUP, LLC

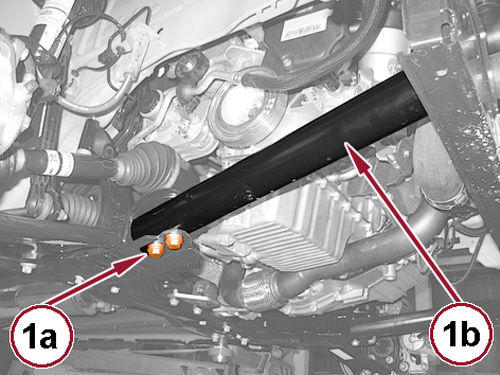

7. Remove the bolts (1a) and the right lower load beam (1b).
8. On the left side, do the same for the removal of the load beam extension, reinforcement bracket and lower load beam.

   Courtesy of CHRYSLER GROUP, LLC

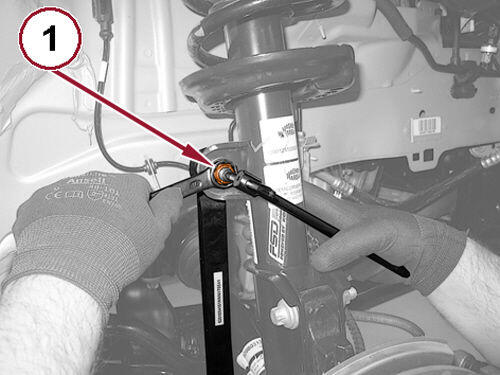

9. Holding the stem of the link, remove the nut (1) on right stabilizer bar link and disconnect it from the shock.
10. On the left side, proceed similarly to disconnect the stabilizer bar link.

    Courtesy of CHRYSLER GROUP, LLC

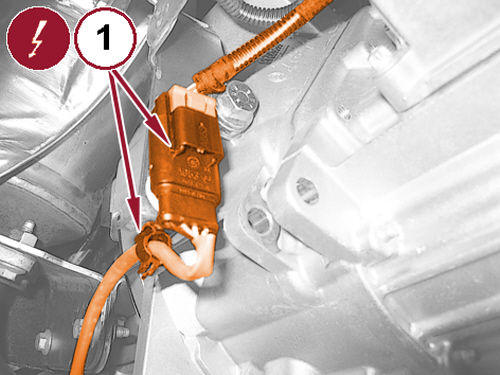

11. Disengage the oxygen sensor wire harness from retainer and disconnect the wire harness connector (1).

    Courtesy of CHRYSLER GROUP, LLC

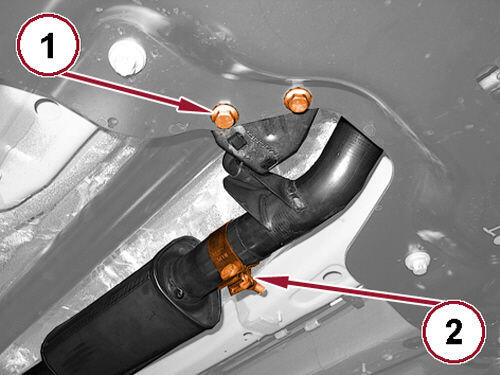

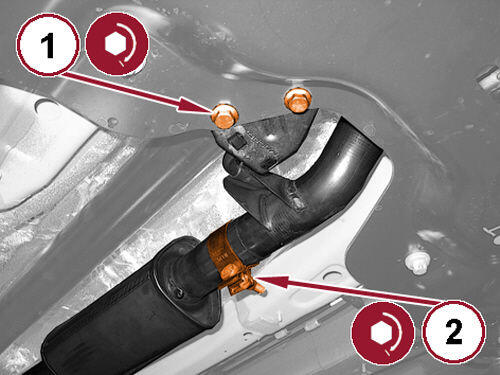

12. Remove the rear exhaust pipe support bracket bolt (1).
13. Loosen the exhaust clamp nut (2).

    Courtesy of CHRYSLER GROUP, LLC

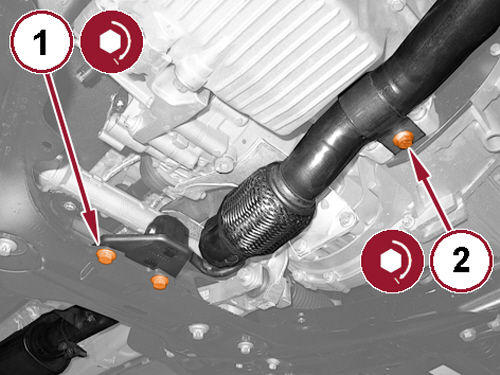

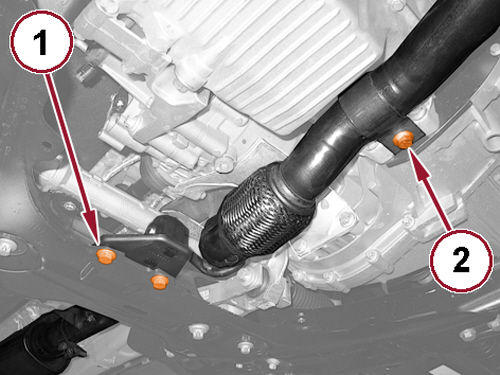

14. Remove the front exhaust pipe support bracket bolts (1).
15. Remove the exhaust pipe to the oil pan bolt (2).

    Courtesy of CHRYSLER GROUP, LLC

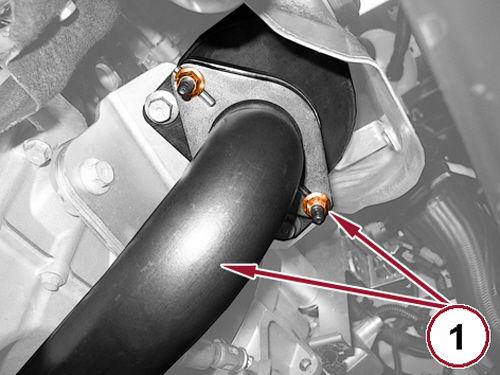

16. Remove the nuts (1) and the exhaust pipe.
17. Remove and discard the gasket.

    Courtesy of CHRYSLER GROUP, LLC

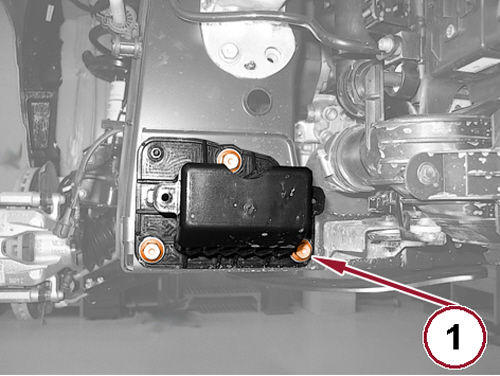

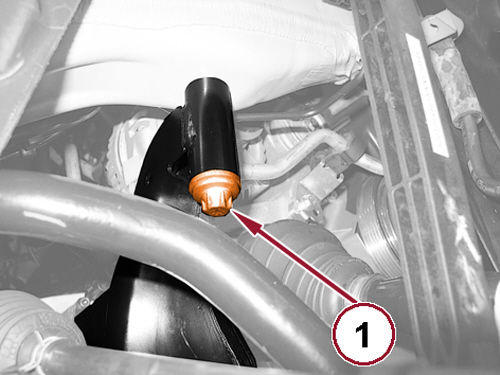

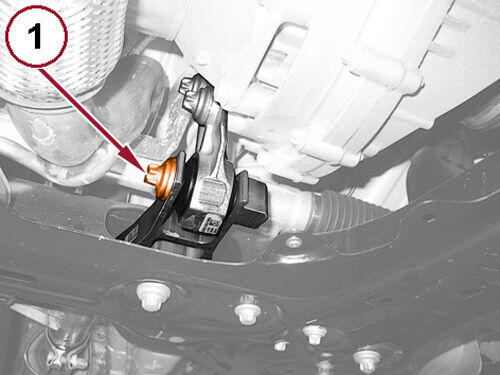

18. Remove the rear engine mount isolator to bracket bolt (1).

    Courtesy of CHRYSLER GROUP, LLC

19. Place a suitable hydraulic lift under the crossmember of the suspension.

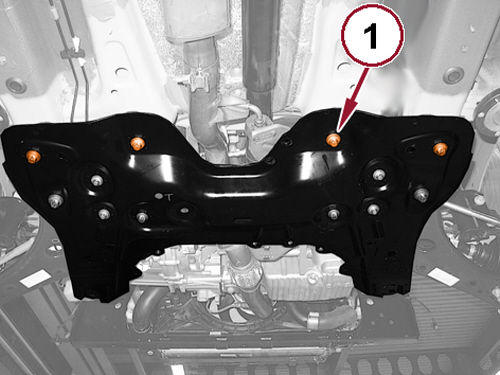

20. Remove the rear of the suspension crossmember to the body bolts (1).

    Courtesy of CHRYSLER GROUP, LLC

21. Remove the left and right side crossmember bolts (1).

    Courtesy of CHRYSLER GROUP, LLC

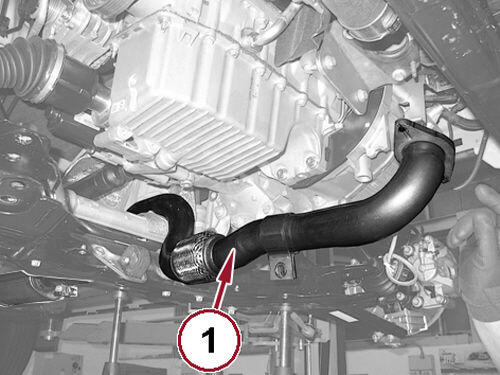

22. Turn the hydraulic lift controls to lower the bar and remove the exhaust pipe with front flex pipe (1) from the muffler.

INSTALLATION

1. Install the exhaust pipe with front flex pipe and connect it to the muffler.

   Courtesy of CHRYSLER GROUP, LLC

2. Using a hydraulic lift put into place the crossmember of the suspension and tighten the left and right side mounting bolts (1) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

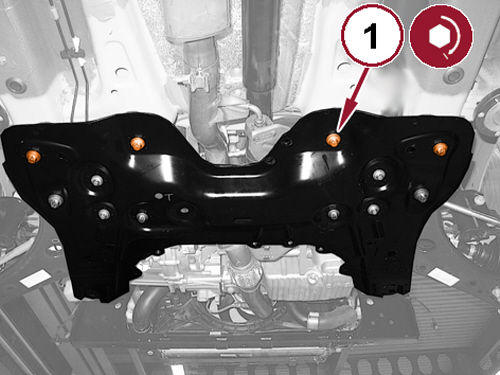

3. Install the rear suspension crossmember to the body bolts and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
4. Remove the hydraulic lift.

   Courtesy of CHRYSLER GROUP, LLC

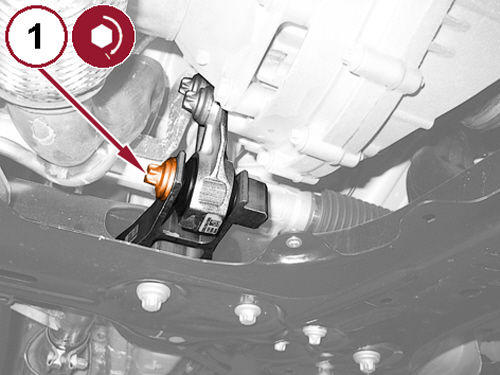

5. Install the rear engine mount isolator bolt (1) and tighten it to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

6. Using a NEW  gasket, connect the exhaust pipe to the catalytic converter and tighten the NEW  nuts (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

7. Install the front exhaust pipe support bracket bolts (1) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
8. Install the exhaust pipe to the engine oil pan bolt (2) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

9. Install the rear exhaust pipe support bracket bolts (1) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
10. Tighten the exhaust clamp nut (2) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
11. Connect the electrical connection of the rear oxygen sensor and catalytic converter to engage the wiring.
12. Connect the right joint stabilizer link and tighten the nut to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
13. On the left side, do the same to connect the stabilizer bar link.

    Courtesy of CHRYSLER GROUP, LLC

14. Install the lower load beam (1a) and tighten the bolts (1b) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

    Courtesy of CHRYSLER GROUP, LLC

15. Install the reinforcement bracket bolts (1) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
16. On the left side, proceed similarly for the reattachment of the lower load beam, reinforcement bracket and load beam extension.

    Courtesy of CHRYSLER GROUP, LLC

17. Install steering column shaft to the steering gear and tighten the NEW  bolt (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
18. Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
19. Install the engine belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
20. Remove the support and lower the vehicle.
