2.0L Diesel: Installation

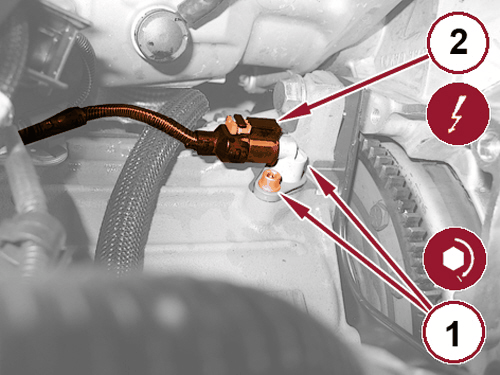

GC0165490Courtesy of CHRYSLER GROUP, LLC
  1. Install the Crankshaft Position (CKP) sensor and tighten the screw (1) to the proper specification.
  2. Connect the CKP sensor wire harness connector (2).
  3. Install the engine cover.
  4. Connect the negative battery cable.
