Removal And Installation: Installation

WARNING: This page is about a different car, the 2019 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.

Courtesy of CHRYSLER GROUP, LLC

If removed, install the amplifier to the mounting bracket.
Connect the two amplifier wire harness connectors.

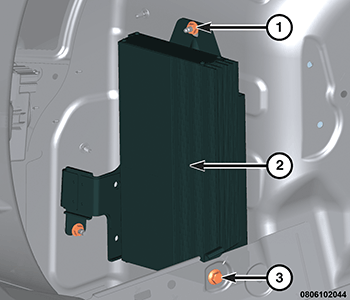

Position the amplifier and mounting bracket (2) and install the three fasteners (1 and 3).
Install the left rear quarter trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL AND INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
