Removal And Installation: Removal
WARNING: This page is about a different car, the 2019 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable.

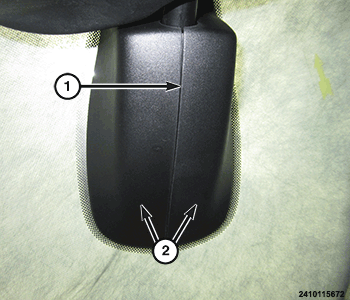

- Using trim stick C-4755 or equivalent, carefully separate the two mirror covers (2), by splitting the seam (1).

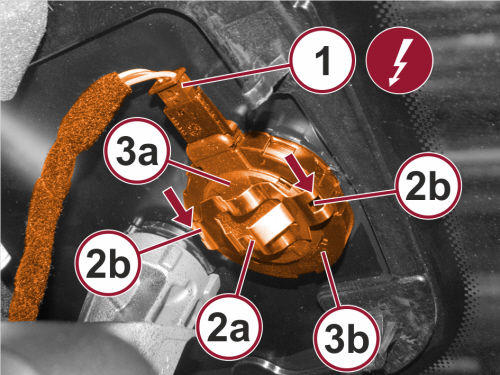

- Disconnect the light rain sensor wiring harness connector (1).
- Remove the retaining clip (2a) by releasing the side hooks, inserting a screwdriver in the openings (2b).
- Remove the light rain sensor (3a) from the housing (3b) on the windscreen.
