2.0L Diesel: Removal

1. Remove the battery tray. Refer to TRAY, BATTERY, REMOVAL AND INSTALLATION .
2. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
3. Remove the engine cover. .
4. Drain the cooling system. Refer to STANDARD PROCEDURE .

   Courtesy of CHRYSLER GROUP, LLC

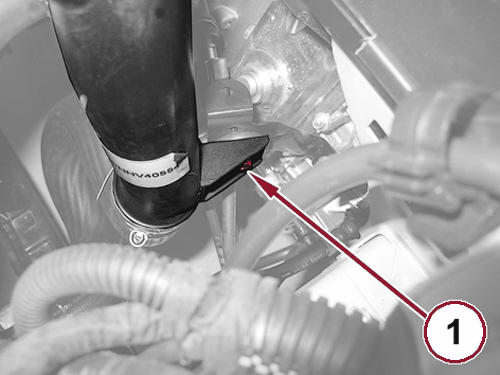

5. Remove the bolt (1) securing the left Charge Air Cooler (CAC) tube.

   Courtesy of CHRYSLER GROUP, LLC

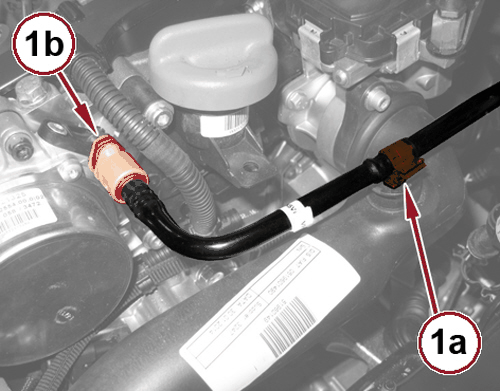

6. Open the retaining clip (1a) and disconnect the vacuum brake booster hose (1b) quick-disconnect fitting (1b).

   Courtesy of CHRYSLER GROUP, LLC

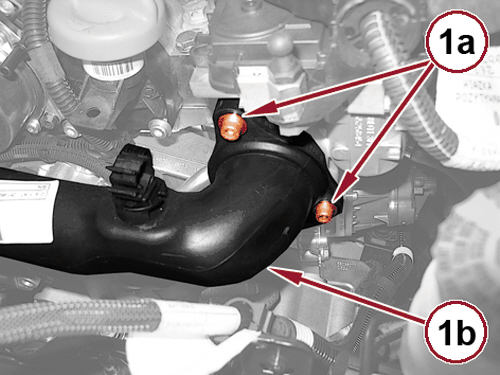

7. Remove the bolts (1a) and the CAC tube (1b).

   Courtesy of CHRYSLER GROUP, LLC

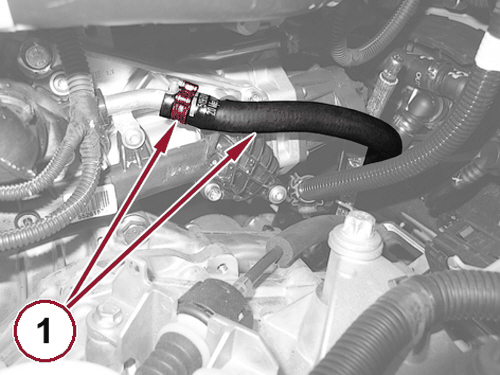

8. Loosen clamp and remove the coolant hose (1).

   Courtesy of CHRYSLER GROUP, LLC

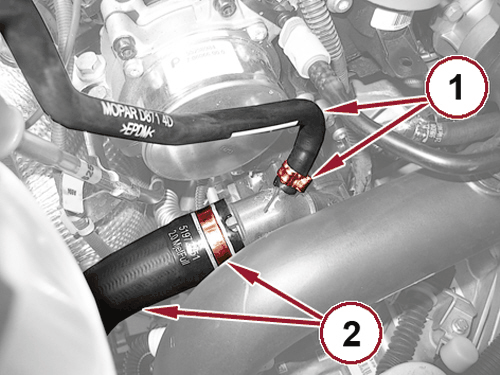

9. Loosen the clamp and remove the degas hose (1) from the thermostat housing.
10. Loosen clamp and remove the upper radiator hose (2) from the thermostat housing.

    Courtesy of CHRYSLER GROUP, LLC

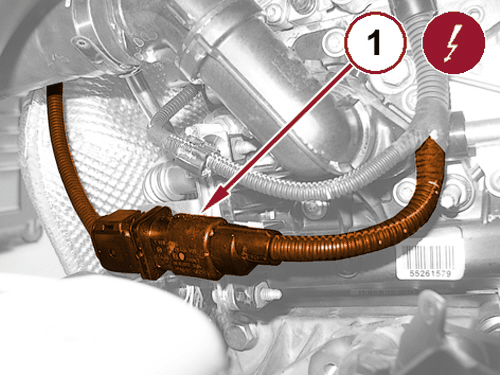

11. Disconnect the front oxygen sensor wire connector (1) and detach wire harness connector from the bracket.

    Courtesy of CHRYSLER GROUP, LLC

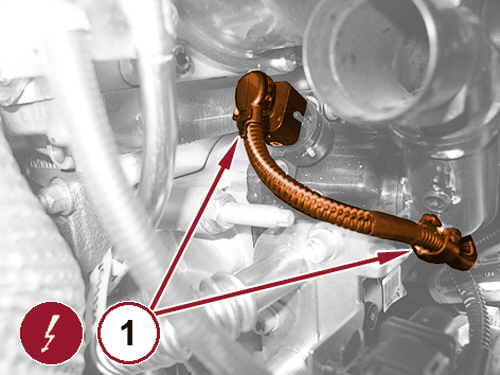

12. Disconnect the coolant temperature sensor wire harness connector wire harness connector (1).

    Courtesy of CHRYSLER GROUP, LLC

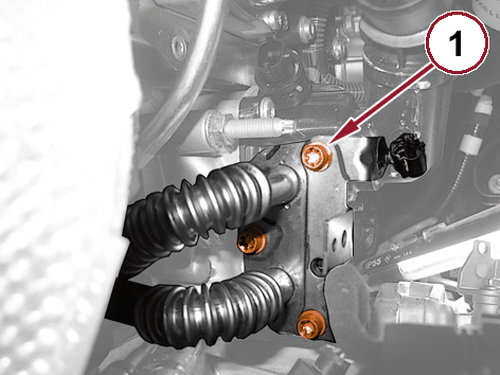

13. Remove the bolts (1) and the EGR tubes from the thermostat housing.

    Courtesy of CHRYSLER GROUP, LLC

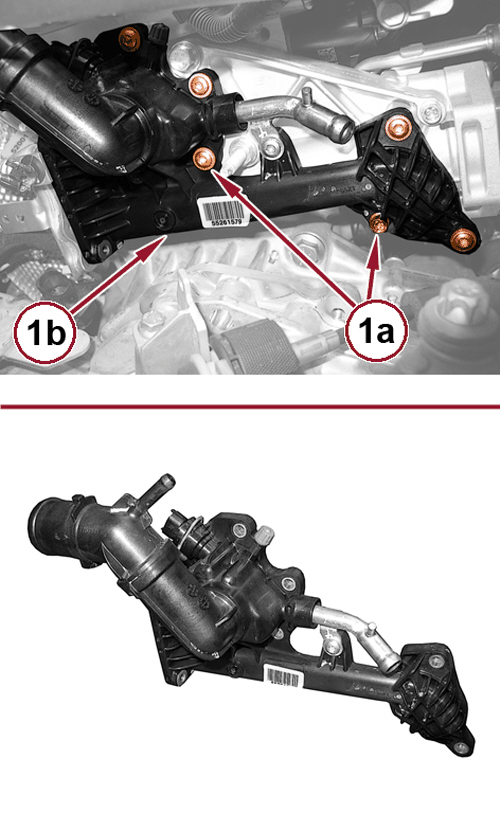

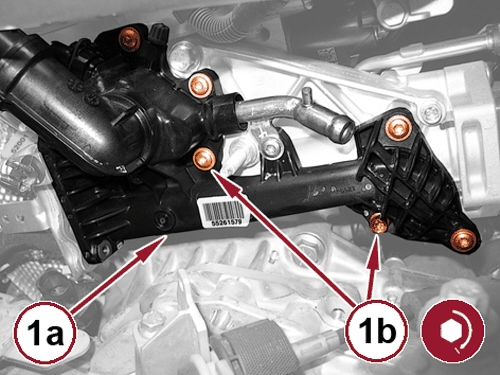

14. Remove bolts (1a) and the thermostat housing assembly (1b).

    Courtesy of CHRYSLER GROUP, LLC

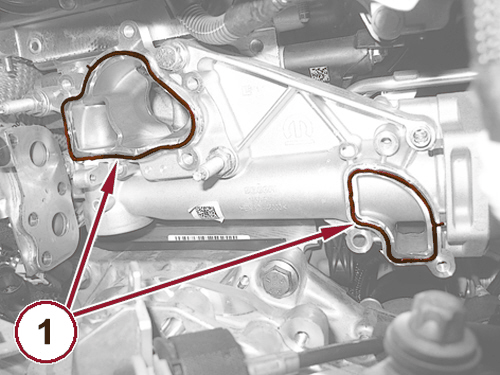

15. Remove and discard the gasket seals (1).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Install NEW  gasket seals (1).

   Courtesy of CHRYSLER GROUP, LLC

2. Install the thermostat housing (1a). Tighten the bolts (1b) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

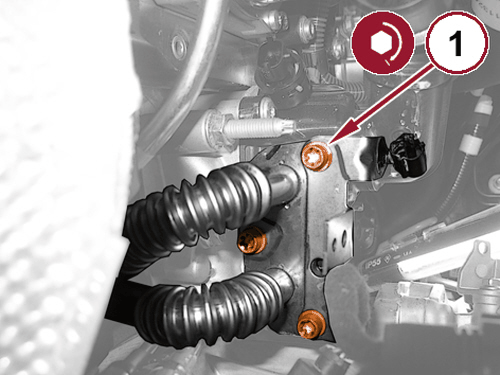

3. Install the bolts (1) securing the EGR tubes to the thermostat housing and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

4. Connect the coolant temperature sensor wire harness connector wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

5. Attach the wire harness connector to the bracket and connect the front oxygen sensor wire connector (1).

   Courtesy of CHRYSLER GROUP, LLC

6. Install the upper radiator hose (2) onto the thermostat housing and tighten the clamp.
7. Install the degas hose (1) onto the thermostat housing and tighten the clamp.

   Courtesy of CHRYSLER GROUP, LLC

8. Install the coolant hose (1) and tighten the clamp.

   Courtesy of CHRYSLER GROUP, LLC

9. Using a NEW  O-ring seal, install the left charge Air Cooler (CAC) tube (1b). Tighten the bolts (1a) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

10. Connect the vacuum brake booster hose (1b) quick-disconnect fitting (1b) and close the retaining clip (1a).

    Courtesy of CHRYSLER GROUP, LLC

11. Install the bolt securing the left CAC tube. Tighten the bolts to the proper specification. Refer to TORQUE SPECIFICATIONS - DIESEL  .
12. Fill the cooling system. Refer to STANDARD PROCEDURE .
13. Install the engine cover. .
14. Install the battery tray. Refer to TRAY, BATTERY, REMOVAL AND INSTALLATION .
15. Run engine to operating temperature and check for leaks.
