Plug, Glow: Installation: Installation
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC

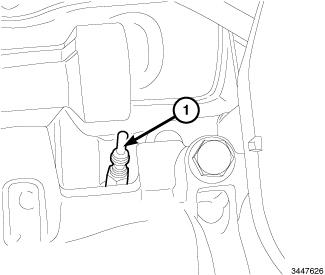

- Install glow plugs (1). Tighten glow plugs to 11 N.m (97 in. lbs.).
Courtesy of CHRYSLER GROUP, LLC

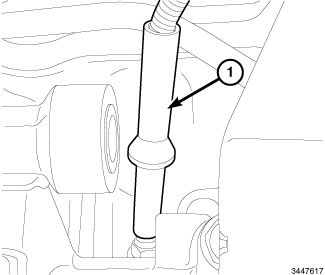

- Connect glow plug harness connector (1).
- Install engine cover.
- Connect the negative battery cable.
