Injector, Diesel Exhaust Fluid: Installation

GC0169765Courtesy of CHRYSLER GROUP, LLC

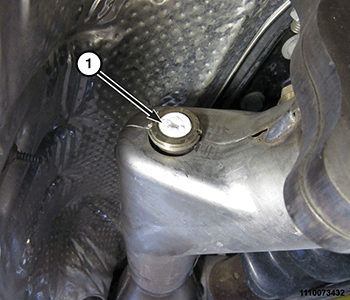

  1. Inspect the opening of the Selective Catalytic Reduction (SCR) mixer tube and make sure the opening is NOT  plugged or restricted with the build up of Diesel Exhaust Fluid (DEF) crystals (1). If the mixer tube opening is plugged or restricted clean as necessary.
    GC0169773Courtesy of CHRYSLER GROUP, LLC

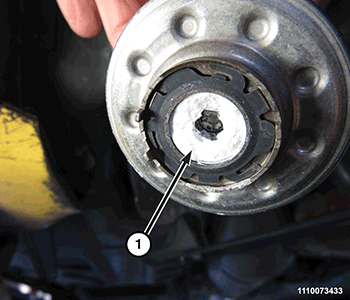

  2. Inspect the opening of the DEF dosing injector and make sure there is NOT  plugged or restricted with the build up of DEF crystals (1). If the DEF dosing injector opening is plugged or restricted clean as necessary.
    GC0157444Courtesy of CHRYSLER GROUP, LLC

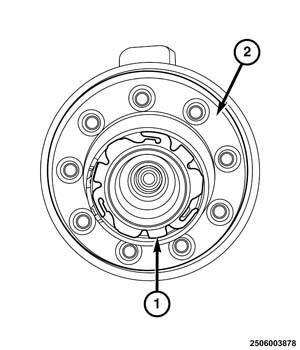

  3. Clean the gasket sealing area.
  4. Install a NEW  DEF dosing injector (2) gasket (1).
    GC0158402Courtesy of CHRYSLER GROUP, LLC

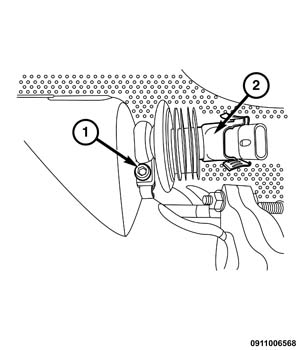

  5. Install the DEF injector (2) onto SCR catalyst. Tighten the clamp (1) to 5 N.m (44 in. lbs.).
    GC0157430Courtesy of CHRYSLER GROUP, LLC
  6. Connect the DEF fluid supply line (1).
  7. Connect the DEF injector wire harness connector (3).
  8. Remove the support and lower the vehicle.
  9. Connect the negative battery cable.
    NOTE:

    Whenever the DEF injector is being replaced the injection of DEF needs to be measured.

  10. Using the scan tool, perform DEF Dosing Injection Quantity  function found under SYSTEM TESTS.
