Section 38 (Charging System (Service Information)): Generator: Installation: 3.6L
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
- Position the generator (1) onto the engine mounting bracket.
- Install the lower mounting bolt and the two upper mounting bolts (3) to generator (1). Tighten bolts to 42 N.m (31 ft. lbs.).
- Connect the field wire connector (3) to the generator.
- Install B+ terminal and nut to generator mounting stud. Tighten nut to 10 N.m (88.5 in. lbs.).
- Snap the plastic protective cover over the B+ terminal.

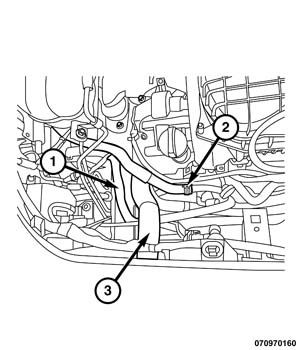

- Install the wiring harness (1) retainer onto the upper frame rail.
- Install the upper radiator hose (3) to the radiator.
- Install the coolant supply line to the heater supply line.
- Fill the cooling system.
- Raise the vehicle.
- Install the accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
- Install the inner splash shield.
- Install the right front wheel.
- Lower the vehicle.
- Connect negative battery cable, tighten nut to 4.5 N.m (40 in. lbs.).
- Start the engine and verify the generator is functioning properly.
