Arm, Upper Control: Removal

WARNING:

All pressurized air suspension components contain high pressure air (up to 220 psig). Use extreme caution when inspecting for leaks. Wear safety goggles and adequate protective clothing when inspecting or servicing the air suspension system. A sudden release of air under this amount of pressure can cause possible serious or fatal injury.

WARNING:

Before performing any service on the air suspension system, the system must be disabled to prevent the system from changing ride height. Before any given component is to be serviced it must be deflated. Servicing the air suspension system without the system disabled, or with pressure in any specific component, can cause possible serious or fatal injury.

GC0145679Courtesy of CHRYSLER GROUP, LLC
  1. If equipped with air suspension (SER), with a scan tool, using the routines under the ASCM, perform the following:
    • Disable the air suspension system.
    • Run the Spring Deflate To Reservoir routine on the air suspension spring on the side where the upper control arm is to be removed.
  2. Secure the steering wheel in the straight ahead position.
  3. If equipped, remove the wiring harness routing clip (2) from the shock mounting stud.
    NOTE:

    Loosen the shock retainer nuts only. The shock must be tilted for removal of the control arm bolts.

  4. If equipped with air suspension, remove the front shock absorber. Refer to SHOCK ABSORBER, SUSPENSION, REMOVAL .
  5. Loosen the three upper shock mounting nuts (1).
  6. Remove the cowl panel cover, and the cowl extension silencer. Refer to COVER, COWL PANEL, REMOVAL . Refer to SILENCER, COWL EXTENSION, REMOVAL .
    GC0145677Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    3.6L shown, others similar.

  7. For the left side only, remove the air cleaner housing as follows:
    1. Remove the air cleaner.
    2. Loosen the fresh air intake clamp (4) and disconnect the hose from housing cover (1).
    3. Disconnecting the PCV air return hose and the power steering hose routing clip (not shown) from the air cleaner body.
    4. Disconnect the weatherstrip (3) from the housing inlet and reposition.
    5. Remove the pushpin (2) and lift the housing from the body grommets to remove.
    GC0145678Courtesy of CHRYSLER GROUP, LLC
  8. For the left side only, remove the steering intermediate shaft pinch bolt (1), disconnect the coupler (3) and position aside for clearance.
    GC0145675Courtesy of CHRYSLER GROUP, LLC
  9. For the right side only, remove the two nuts (2) that secure the HVAC air inlet duct (1) to the engine compartment side of the dash panel (3) and remove the duct.
    GC0173647Courtesy of CHRYSLER GROUP, LLC
  10. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  11. Remove the tire and wheel assembly.
  12. If equipped with a height sensor, disconnect the height sensor from the upper control arm ball stud.
  13. Remove the speed sensor bolt (2), and remove the sensor from the knuckle.
  14. Remove the speed sensor wiring retaining clip from the knuckle.
  15. Support the outside of the lower control arm (8) with a suitable holding fixture, and raise to normal ride height.
  16. Remove the clevis to lower control arm bolt/nut (6).
    GC0117739Courtesy of CHRYSLER GROUP, LLC
  17. Remove the upper ball joint retaining nut (4) from the ball joint (2).

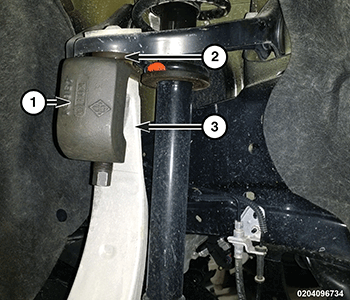

    GC0173664Courtesy of CHRYSLER GROUP, LLC
  18. Separate the upper ball joint (2) from the knuckle (3) using Ball Joint Press (special tool #C-4150A, Press, Ball Joint) (1).
    GC0117744Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    It is necessary to pull the bottom of the shock assembly outward just enough to remove the upper control arm flag bolts (1) without completely removing the shock assembly.

  19. Remove the nuts and flag bolts (1) securing the upper control arm (5) to the body.
  20. Remove the upper control arm (5) from the vehicle.
