Disassembly And Assembly: Assembly

The work area, counter surfaces and tools must be thoroughly cleaned before attempting to assemble the 948TE transmission. All of the sub assemblies should be disassembled, cleaned, and assembled with new sealing components where applicable. The transmission housing should be clean and oil free before beginning this procedure. The B, C, D, and E-clutches should be properly measured and adjusted prior to assembling the transmission. If the transmission was contaminated with metallic material, all of the thrust bearings and roller bearing should be replaced. The bearing in the output gear support assembly is not serviceable. The output gear support assembly should be replaced if metal debris is present.

WARNING:

Always wear safety glasses when cleaning, disassembling and assembling the transmission/transaxle. Contents of the transmission/transaxle can become projectiles (e.g., springs, snap-rings, as well as metal and other debris). Failure to wear safety glasses may result in severe personal injury.

Place the transmission housing on a clean work surface with the open interior upward.
Place wooden blocks under the transmission to stabilize it for assembly.

Courtesy of CHRYSLER GROUP, LLC
Install the split roller bearing (1) in position on the input shaft support.

Courtesy of CHRYSLER GROUP, LLC
Install the outer seal-rings (1) in the lands in the input shaft support.

Courtesy of CHRYSLER GROUP, LLC
Install the inner seal-rings (1) in the lands in the input shaft support.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
The seal lip will be facing upward when the piston is oriented as shown in the illustration.
Install the inner seal (2) on the C-clutch piston (1).

Courtesy of CHRYSLER GROUP, LLC

NOTE:
The seal lip will be facing upward when the piston is oriented as shown in the illustration.
Install the outer seal (2) on the C-clutch piston (1).

Courtesy of CHRYSLER GROUP, LLC
Lubricate the C-clutch piston seals with clean transmission fluid and install the C-clutch piston (1) in the transmission housing.

Courtesy of CHRYSLER GROUP, LLC
Place the C-clutch bellville spring (1) in position on the C-clutch piston (2).

Courtesy of CHRYSLER GROUP, LLC
Place the (special tool #10504, Compressor, Spring) (1) over the C-clutch bellville spring (2) at the bottom of the transmission housing (3).
Position the transmission housing on a suitable arbor press using wooden blocks for support.

Courtesy of CHRYSLER GROUP, LLC
Place tool (special tool #8228, Installer, Bearing) (3) over the input shaft support (tool 8901 with 10428 legs can also be used), compress the bellville spring to gain access to the snap-ring (1) groove.

Courtesy of CHRYSLER GROUP, LLC
Install the snap-ring, stepped side down, with the snap ring ends (1) aligned with machined pocket in the case (2) to hold the C-clutch bellville spring in the transmission housing.
Remove the transmission housing from the arbor press and position it on a clean work bench. Position wood blocks under transmission to stabilize it for assembly.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Diesel and V-6 gas engine clutch pack shown in illustration, 4 cylinder gas engines will have one less friction disc (3) and steel plate (4).
Install one C-clutch steel plate (4), then install the friction discs (3) alternately separated with steel plates (4) into the transmission housing on top of the C-clutch piston.

Courtesy of CHRYSLER GROUP, LLC
Install the C-clutch reaction plate (1) with raised bosses upward on top of the C-clutch disc and plate pack.

Courtesy of CHRYSLER GROUP, LLC
Install the select fit snap-ring, aligning the snap ring ends (2) with the anti-rotation tab of the reaction plate (1).
NOTE:
Perform C-clutch measurements to verify that the correct selective snap ring is installed

Refer to ADJUSTMENTS .

Courtesy of CHRYSLER GROUP, LLC
Perform D-clutch measurements to verify that the correct selective reaction plate (2) is selected. Refer to ADJUSTMENTS .
Install the correct thickness selective reaction plate (2).
Starting with a friction plate (1), alternately install the friction (1) and steel plates (3) in to the case.

Courtesy of CHRYSLER GROUP, LLC
Install the input shaft rear support selective thrust washer (1).

Courtesy of CHRYSLER GROUP, LLC
Install the thrust bearing (1) onto the input shaft rear support.

Courtesy of CHRYSLER GROUP, LLC
Align the teeth of the friction discs for the D- and C-clutches (1, 2) to facilitate the installation of the annulus gear 2, D and C clutch hubs, and input shaft assembly.

Courtesy of CHRYSLER GROUP, LLC
Place the thrust bearing (1) in position on the C-clutch hub (2).

Courtesy of CHRYSLER GROUP, LLC
Place the Annulus gear 2, D-clutch hub (1) in position on the C-clutch hub (2).

Courtesy of CHRYSLER GROUP, LLC
Insert the sun gear 1 (1) into annulus gear 2 (2), D and C-clutch hub (3).

Courtesy of CHRYSLER GROUP, LLC
Turn the annulus gear 2, D and C-clutch hub over and place it on tool (special tool #9611, Plug, Differential End) (2) to hold the sun gear in position.

Courtesy of CHRYSLER GROUP, LLC
Using a suitable snap-ring pliers (1), install the snap-ring (2) to hold the sun gear 1 to the annulus gear 2, D and C-clutch hub.

Courtesy of CHRYSLER GROUP, LLC
Insert the number 7 thrust bearing (1) in the C-clutch hub, it should have a snap fit.

Courtesy of CHRYSLER GROUP, LLC
Install NEW seal-rings (1) in the lands (2) on the input shaft (3).

Courtesy of CHRYSLER GROUP, LLC
Insert the input shaft into the B-clutch (1) hub.
Using a suitable snap-ring pliers (3), install the snap-ring (2) to hold the input shaft/dog clutch A to the B-clutch (1) hub.
Install the annulus gear 2, D and C-clutch hub on the input shaft and B-clutch assembly.

Courtesy of CHRYSLER GROUP, LLC
While not allowing the input shaft to slip inward, wriggle the annulus gear 2, D and C-clutch hubs and input shaft assembly (1) until they engage the D and C-clutch discs. If the input shaft slips inward, the B-clutch will come out of its retainer impeding proper installation.
NOTE:
A solid audible clunk will be heard if installed correctly.

Courtesy of CHRYSLER GROUP, LLC
Place the bellville spring (1) in position on the transmission housing (2).

Courtesy of CHRYSLER GROUP, LLC
Install NEW O-ring seal (2) in the D-clutch piston retainer (1).

Courtesy of CHRYSLER GROUP, LLC
Install NEW outer lip seal (2) in the D-clutch piston (1).

Courtesy of CHRYSLER GROUP, LLC
Install NEW inner lip seal (1) in the D-clutch piston (2).

Courtesy of CHRYSLER GROUP, LLC
Lubricate the D-clutch piston seals with clean transmission fluid and install the piston (2) in the retainer (1).

Courtesy of CHRYSLER GROUP, LLC
Place the D-clutch piston (2) and retainer (1) assembly in the transmission housing over the D-clutch bellville spring. The fingers on the D-clutch piston (2) rest against the D-clutch selective reaction plate.
Position the transmission housing on a suitable arbor press using wooden blocks for support.

Courtesy of CHRYSLER GROUP, LLC
Using Tool (special tool #8901A, Pressing Tool) (with the pressure scale removed) (1) and legs (special tool #10428, Adapter, Pressing Tool), compress the bellville spring to gain access to the snap-ring groove in the transmission housing.
Install the snap-ring to hold the D-clutch piston retainer (2) into the transmission housing.
Remove the transmission housing from the arbor press and place the transmission housing on the clean work surface. Use wood blocks to stabilize the transmission.
Insert the carrier gear 1 and 2 annulus gear 2, D-clutch hub and input shaft assembly onto the annulus gear 2, D and C-clutch hub and input shaft assembly.

Courtesy of CHRYSLER GROUP, LLC
Install the NEW O-ring seal (1) into the carrier gear 1 and 2.

Courtesy of CHRYSLER GROUP, LLC
Install the annulus gear 3 (1) into the carrier gear 1 and 2.
.

Courtesy of CHRYSLER GROUP, LLC
Install the snap-ring (1) to hold the annulus gear 3 (2) in the carrier gear 1 and 2.

Courtesy of CHRYSLER GROUP, LLC
Place the thrust bearing (1) in position under the annulus gear 1 planetary hub (2).

Courtesy of CHRYSLER GROUP, LLC
Install the annulus gear 1 planetary hub (1) into the carrier gear 1 and 2 (2).

Courtesy of CHRYSLER GROUP, LLC
Place the thrust bearing (1) onto the annulus gear 1 planetary hub (2).

Courtesy of CHRYSLER GROUP, LLC
Install the transfer gear bearing preload shim (1).

Courtesy of CHRYSLER GROUP, LLC
Using tool (special tool #6888, Installer, Seal) (2), and handle (special tool #C-4171, Driver Handle, Universal) (3) install the transfer gear bearing cone (1) onto the transmission housing.

Courtesy of CHRYSLER GROUP, LLC
Position the park rod (2) into the park rod guide (1).

Courtesy of CHRYSLER GROUP, LLC
Position the park rod guide (1) into the housing and tighten the park rod guide bolt (2) to the proper specifications. Refer to TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Position the park pawl (2) into the park rod guide.
Install the reaction pin (1) through the park pawl (2) and into the case.
Install the park pawl (2) return spring (3).

Courtesy of CHRYSLER GROUP, LLC
Install the annulus gear 4 (1) in the annulus gear 3 (2).

Courtesy of CHRYSLER GROUP, LLC
Install a NEW thrust spacer (1) on the underside of the gear 4 planetary pinion carrier (2).

Courtesy of CHRYSLER GROUP, LLC
Install a NEW thrust spacer (1) on the topside of the gear 4 planetary pinion carrier (2).

Courtesy of CHRYSLER GROUP, LLC
Install the gear 4 planetary pinion carrier (1) into the annulus gear 4.

Courtesy of CHRYSLER GROUP, LLC
Install the sun gear 3 and 4 and Dog Clutch-F (1) in the gear 4 planetary pinion carrier.

Courtesy of CHRYSLER GROUP, LLC
Install the roller type thrust bearing (1) onto the sun gear 3 and 4 and Dog Clutch-F (2).
NOTE:
If a new transfer gear (1) or transmission housing are being used, measurements must be performed to determine correct thickness for the bearing preload shims

Refer to STANDARD PROCEDURES .

If the bearings and races are replaced the factory installed preload shims do not require replacement.
If necessary, replace the bearings and races on the transfer gear (1).
Install the transfer gear (1) into the transmission housing.

Courtesy of CHRYSLER GROUP, LLC
Install the output gear support (1) into the gear 4 planetary pinion carrier (2).

Courtesy of CHRYSLER GROUP, LLC
Install the E-clutch hub and shaft (1) in the output gear support (2).

Courtesy of CHRYSLER GROUP, LLC
Install the thrust bearing (1) on the E-clutch (2) hub.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Before installing the E-clutch, use a suitable screwdriver to align the grooves in the friction discs.
Wriggle the E-clutch (1) until all of the friction discs are fully engaged on the E-clutch hub and shaft.
NOTE:
When the E-clutch (1) is fully seated the gap (2) will be very small between the E-clutch retainer and the output gear support.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
If a new differential (1) or transmission housing are being used, measurements must be performed to determine correct thickness for the bearing preload shims. If the bearings and races are replaced the factory installed preload shims do not require replacement. Refer to STANDARD PROCEDURES .
If necessary, replace the bearings and races on the differential (1).
Install the differential assembly (1) into the transmission housing.

Courtesy of CHRYSLER GROUP, LLC
Install a NEW seal (1) in the port in the transmission housing.

Courtesy of CHRYSLER GROUP, LLC
Install a NEW gasket (1) on the sealing surface of the transmission housing (2).
If necessary, replace the output seal and the impeller hub seal.

Courtesy of CHRYSLER GROUP, LLC
Guide the bellhousing (1) downward over the input and output shafts and onto the transmission housing (2).

Courtesy of CHRYSLER GROUP, LLC
Rotate the output gear clockwise to assure guide pin (1) alignment.

Courtesy of CHRYSLER GROUP, LLC
Rotate the output gear support (1) through the window (2) behind the valve body until the guide pin engages the receptacle hole in the bellhousing.
Engage the guide pins in the transmission housing into the receptacle holes in the bellhousing to assure proper alignment.
Install several bolts to hold the bell housing to the transmission housing. Tighten the bolts hand tight.
Position the transmission on the bench with the bellhousing facing outward.

Courtesy of CHRYSLER GROUP, LLC
Install the bolts (1) with NEW seal washers to hold the bellhousing to the output gear support and tighten to the proper specifications. Refer to TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Install the bolts (1) to hold the bellhousing to the transmission housing and tighten to the proper specifications. Refer to TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Install NEW O-rings on both ends of the fluid transfer tubes.
Install the fluid transfer tubes (1) in the transmission housing.

Courtesy of CHRYSLER GROUP, LLC
Insert the speed sensors (1) into the transmission with the wire harness connected.

Courtesy of CHRYSLER GROUP, LLC
Install the speed sensor screw (1) to hold the speed sensors to the transmission housing and tighten to the proper specifications. Refer to TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Place the Transmission Range Sensor (TRS) (1) in position on the transmission with the wire harness connected.

Courtesy of CHRYSLER GROUP, LLC
Install the TRS screw (1) to hold the TRS to the transmission housing and tighten to the proper specifications. Refer to TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Place the valve body (1) in position on the transmission.
Place the transmission solenoid wire harness connector (2) in position on the solenoids.
Press the transmission solenoid wire harness connector (2) inward to engage the terminals on the solenoids.

Courtesy of CHRYSLER GROUP, LLC
Install the screws (1) to hold the valve body wire harness connector (2) to the valve body and solenoids and tighten to the proper specifications. Refer to TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Connect the wire harness connector (2) to the fluid pressure sensor (1).

Courtesy of CHRYSLER GROUP, LLC

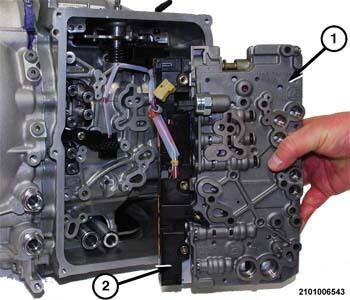

Turn the valve body (1) over and align with the fluid transfer tubes.

Courtesy of CHRYSLER GROUP, LLC
Guide the manual lever cam (1) into the slot on the manual valve (2).
Firmly press the valve body inward until the O-rings on the fluid transfer adapters engage into receptacle holes on the valve body.

Courtesy of CHRYSLER GROUP, LLC

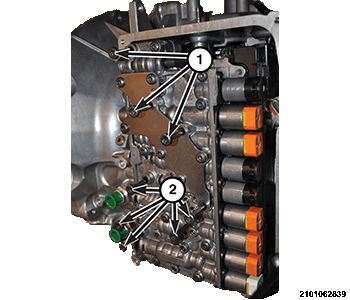

Install the 3 three upper valve body bolts (1) and five lower valve body bolts (2) to the transmission housing and tighten to the proper specifications. Refer to TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

NOTE:
A light coating of assembly lube can be applied to the O-ring seals (2) of the valve body wire harness connector to ease installation.
Install NEW O-ring seals (2) on the valve body wire harness connector (1).

Courtesy of CHRYSLER GROUP, LLC
Place the valve body cover pan (1) in position on the transmission.
NOTE:
Be certain that the flat side (2) on the valve body wire harness connector (3) is aligned with the flat spot on the valve body cover pan (1).
Insert the valve body wire harness connector (3) into the opening on the inside of valve body cover pan (1).

Courtesy of CHRYSLER GROUP, LLC
Press the transmission solenoid connector inward until the retainer clip groove (1) is exposed on the outside of the valve body cover pan.
Install the clip (2) to hold the transmission solenoid connector in the valve body cover pan.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
The gasket seal (1) and valve body cover pan (2) are replaced together. If either are damaged you must replace the valve body cover pan/gasket as an assembly.
Make sure the gasket seal (1) is in the groove around the sealing surface of the valve body cover pan (2).

Courtesy of CHRYSLER GROUP, LLC
Install the valve body cover pan and valve body cover pan bolts (1) to hold the valve body cover pan to the transmission housing and tighten to the proper specifications. Refer to TECHNICAL SPECIFICATIONS .
