Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine cover. Refer to the appropriate Service Information .
    GC0166089Courtesy of CHRYSLER GROUP, LLC

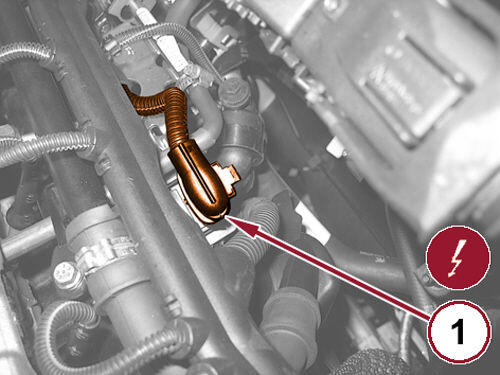

  3. Disconnect the turbo boost pressure sensor wire harness connector (1).
    GC0163890Courtesy of CHRYSLER GROUP, LLC

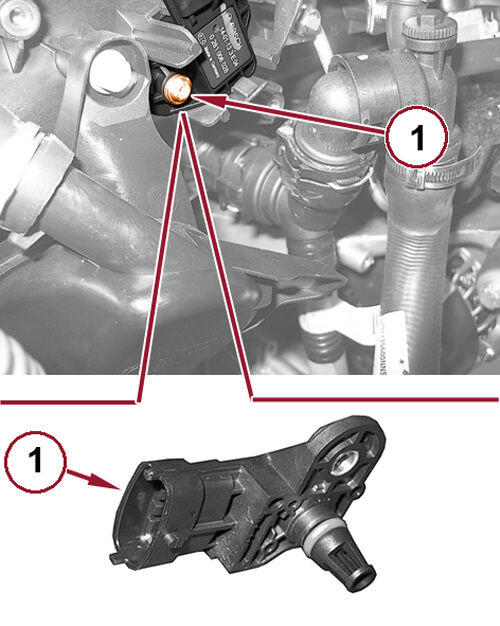

  4. Remove the screw and the boost pressure sensor (1).
