1.6L Diesel: Installation

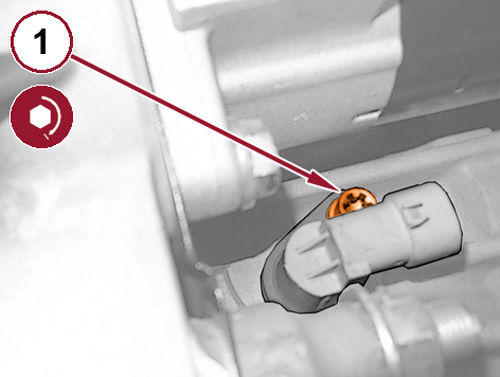

- Install the Crankshaft Position (CKP) sensor and tighten the bolt (1) to the proper specification. Refer to TORQUE SPECIFICATIONS DIESEL .
- Connect the CKP sensor wire harness connector.
- Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
- Connect the negative battery cable.
