Cable, Release: Installation

NOTE:

DO NOT close the cable adjuster lock until the installation is complete.

NOTE:

For safety, it is recommended to use a pneumatic or hydraulic rivet gun for installation.

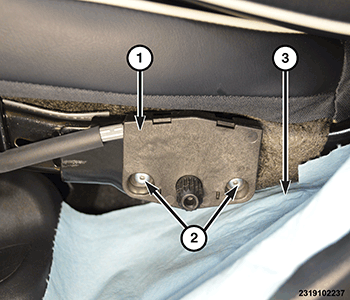

GC0173797Courtesy of CHRYSLER GROUP, LLC
  1. Position the release cable (1) onto the seat and install the NEW rivets (2).

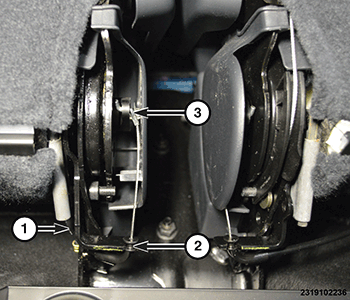

    GC0173548Courtesy of CHRYSLER GROUP, LLC
  2. Insert the cable end (3) into the release mechanism.
  3. Clip the cable firmly into the seat bracket (2).
    GC0173770Courtesy of CHRYSLER GROUP, LLC
  4. Reach under the seat and close the cable adjuster lock (1). Do not pull on the cable when doing this. The cable is spring loaded and self adjusting, after the cable ends have been installed.
  5. Temporarily install the handle and test the function of the release cable.
  6. Route the cable and clip it into place, install zip ties as necessary.

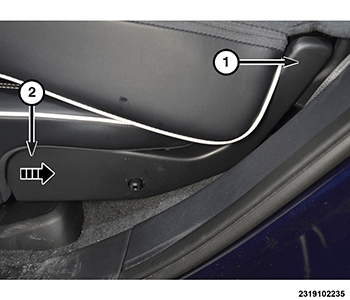

    GC0173768Courtesy of CHRYSLER GROUP, LLC
  7. Install the side cover, starting at the front (2).

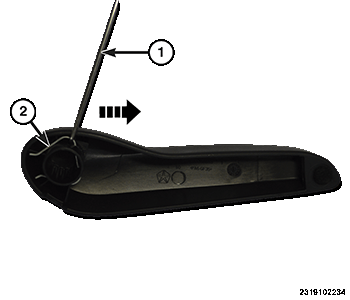

    GC0173560Courtesy of CHRYSLER GROUP, LLC
  8. Make sure the clip (2) is in place, then install the release handle.
