Module Installation
WARNING: This page is about a different car, the 2018 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
This procedure is for Alpine audio system. For all other audio systems,
Refer to AMPLIFIER, INSTALLATION .

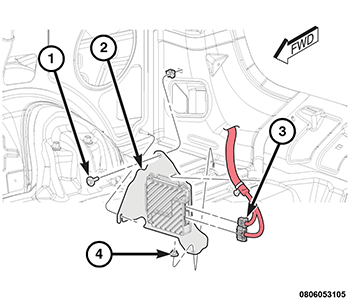

- Install the retainers to the Active Noise Cancellation (ANC) module and attach to the ANC module bracket.
- Position the ANC module into place.
- Install and tighten the mounting fasteners (1) and (4).
- Connect the two wire harness connectors (3).
- Install the subwoofer. Refer to SPEAKER, INSTALLATION .
- Install the right quarter trim panel. Refer to PANEL, QUARTER TRIM, INSTALLATION .
- Connect the battery negative cable.
