Cluster Assembly

WARNING: This page is about a different car, the 2018 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Position the steering column to its lowest position.
  3. Using a trim tool, release the clips and position the steering column seal back.

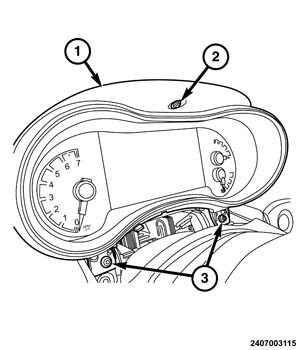

    GC0158338Courtesy of CHRYSLER GROUP, LLC
  4. Remove the fasteners (2&3) that secure the instrument cluster and bezel (1) assembly to the instrument panel.
  5. Pull the top of the instrument cluster back and lift the instrument cluster upward to remove.

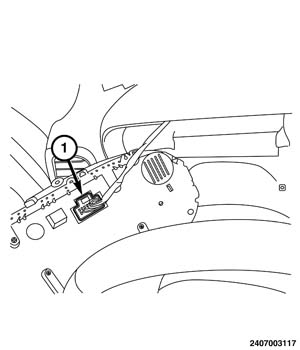

    GC0158390Courtesy of CHRYSLER GROUP, LLC
  6. Disconnect the instrument cluster wire harness connector (1) from the connector receptacles on the back of the cluster housing.
  7. Remove the instrument cluster from the vehicle.
