Removal And Installation: Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

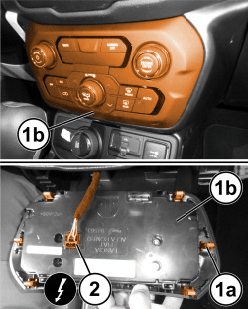

- Position the ICS (1b) to the instrument panel and connect the wire harness connector to the ICS (2).
- Install the ICS (1b) into the instrument panel. Be certain the ICS retaining tabs (1a) fully engage the instrument panel.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
