Module, Powertrain Control (Pcm): Removal

WARNING: This page is about a different car, the 2018 Fiat 500L. However, it is still accessible from the selected car via links, so may be relevant.

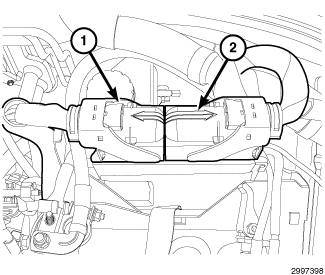

GC0152393Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Disconnect the Powertrain Control Module (PCM) electrical connectors (1 and 2).
  3. Remove the fasteners securing the PCM to the bracket.
  4. Remove the PCM from the bracket.
