Torque Specifications
TORQUE SPECIFICATION

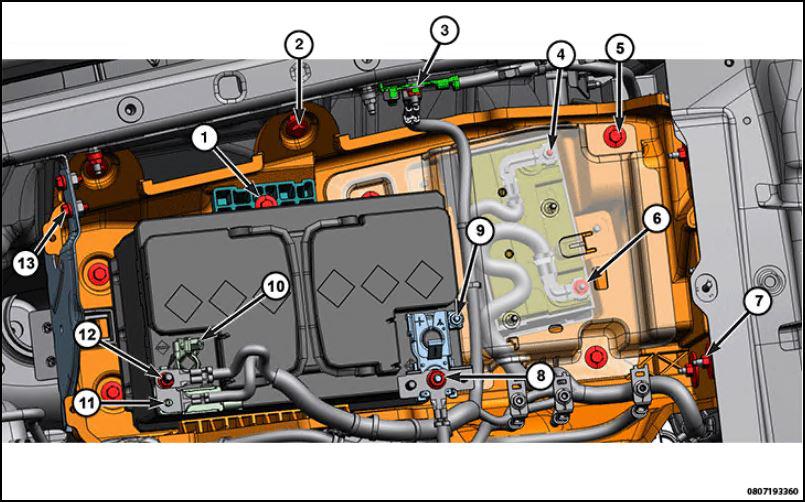

| CALLOUT | DESCRIPTION | SPECIFICATIONS | COMMENT |
|---|---|---|---|
| 1 | Battery Hold Down Bolt | 6 N.m (53 In. Lbs.) | - |
| 2 | Battery Tray Bolts | 6 N.m (53 In. Lbs.) | Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. |
| 3 | Negative Battery Cable to Body M6 | 12 N.m (9 Ft. Lbs.) | - |
| 4 | Auxiliary Battery - M6 Double Ended Torx Stud | 6 N.m (53 In. Lbs.) | - |
| 5 | Auxiliary Battery Cover to Battery Tray | 4 N.m (35 In. Lbs.) | - |
| 6 | Auxiliary Battery M6 Nut | 6 N.m (53 In. Lbs.) | - |
| 7 | Battery Tray Nuts | 4 N.m (35 In. Lbs.) | Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. |
| 8 | Battery Positive Cable M6 | 9 N.m (80 In. Lbs.) | - |
| 9 | Battery Positive Cable M5 | 9 N.m (80 In. Lbs.) | - |
| 10 | Intelligent Battery Sensor (IBS) To Negative Post | 7 N.m (62 In. Lbs.) | - |
| 11 | Auxiliary Negative Cable to Negative Cable at Battery | 8 N.m (71 In. Lbs.) | - |
| 12 | Negative Cable To Intelligent Battery Sensor (IBS) | 10 N.m (89 In. Lbs.) | - |
| 13 | Battery Tray To Front Bracket Support | 4 N.m (35 In. Lbs.) | Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. |
| - | Negative Battery Cable to Body M8 | 8 N.m (71 In. Lbs.) | - |
TORQUE SPECIFICATION

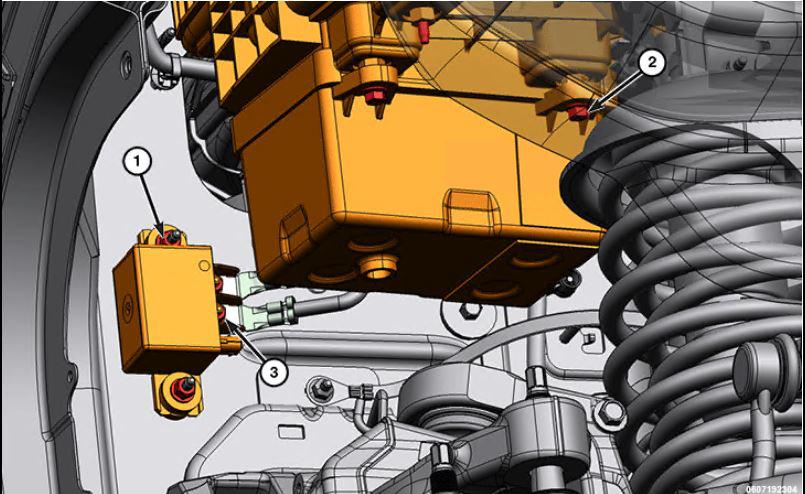

| CALLOUT | DESCRIPTION | SPECIFICATIONS | COMMENT |
|---|---|---|---|
| 1 | PCR Mount To Ground | 11 N.m (8 Ft. Lbs.) | - |
| 2 | Auxiliary Battery Tray To Battery Tray | 8 N.m (71 In. Lbs.) | - |
| 3 | B+ Wire To PCR Positive Terminals | 11 N.m (8 Ft. Lbs.) | - |
| - | Battery Ground To Frame | 8 N.m (71 In. Lbs.) | - |
| - | Ground To PCR Bracket | 9 N.m (80 In. Lbs.) | Right Hand Drive Only |
| - | Negative Cable Stud | 15 N.m (11 Ft. Lbs.) | Right Hand Drive Only |
