Disassembly And Assembly

DISASSEMBLY

Courtesy of CHRYSLER GROUP, LLC

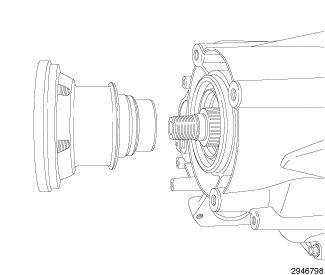

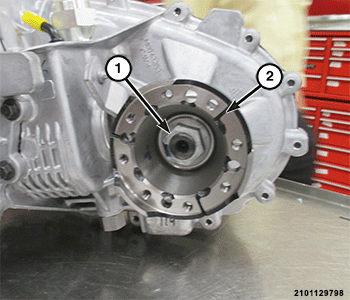

1. Remove the rear output flange nut (1) and remove the rear output flange (2). If necessary, use a suitable 2 or 3 jaw puller to remove the output flange.

   Courtesy of CHRYSLER GROUP, LLC

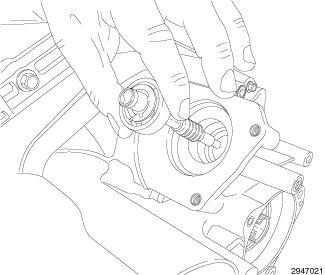

2. Remove encoder screws and the encoder from the transfer case.

   Courtesy of CHRYSLER GROUP, LLC

3. Remove the shift shaft snap ring (1) from the transfer case.

   Courtesy of CHRYSLER GROUP, LLC

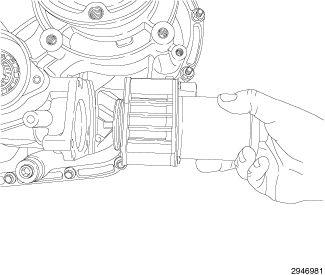

4. Remove shift motor bolts (1) and remove the shift motor (2).

   Courtesy of CHRYSLER GROUP, LLC

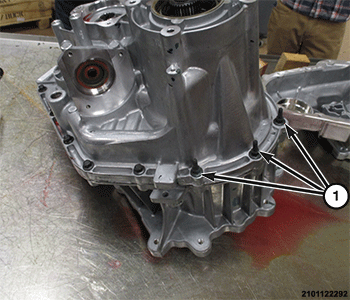

5. Remove the transfer case bolts and studs (1) and separate the case halves.
   NOTE:

   Some prying may be necessary to break the seal between the front and rear case. Use care to not damage the sealing surfaces.

   Courtesy of CHRYSLER GROUP, LLC

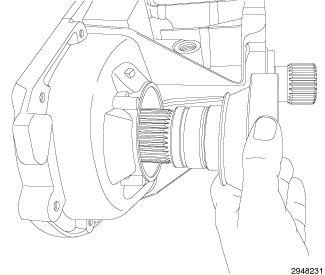

6. Remove the output shaft thrust washer.

   Courtesy of CHRYSLER GROUP, LLC

7. Remove the oil pump assembly.

   Courtesy of CHRYSLER GROUP, LLC

8. Remove the pick-up magnet from the magnet pocket.
   NOTE:

   For ease of installation note the orientation of the worm shaft drive gear inner splines to the shift shaft outer splines.

   Courtesy of CHRYSLER GROUP, LLC

9. Remove the worm drive gear.
   NOTE:

   For ease of installation note the orientation of the clutch cam inner splines to the shift shaft outer splines.

   Courtesy of CHRYSLER GROUP, LLC

10. Remove the clutch cam.

    Courtesy of CHRYSLER GROUP, LLC

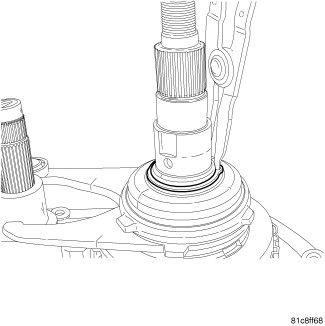

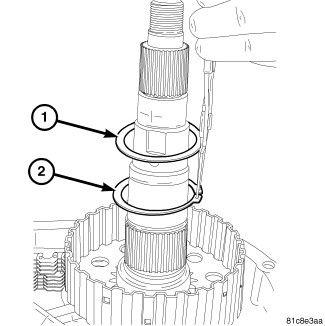

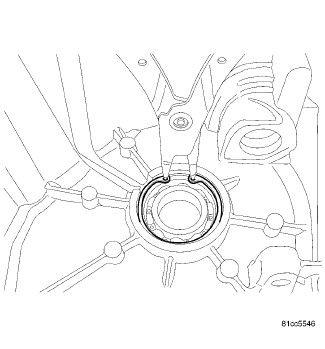

11. Remove the clutch upper snap ring.

    Courtesy of CHRYSLER GROUP, LLC

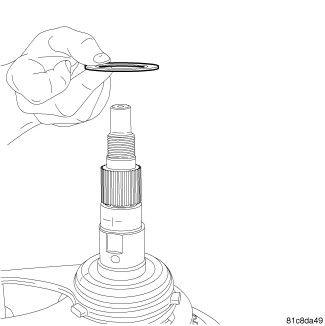

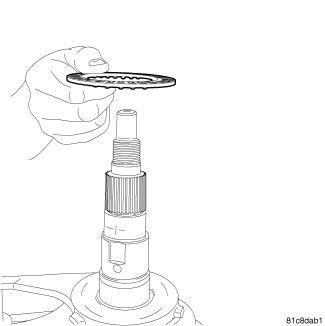

12. Remove the clutch shim.

    Courtesy of CHRYSLER GROUP, LLC

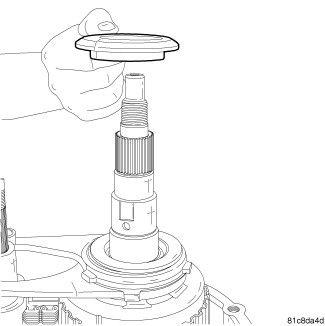

13. Remove the thrust collar.

    Courtesy of CHRYSLER GROUP, LLC

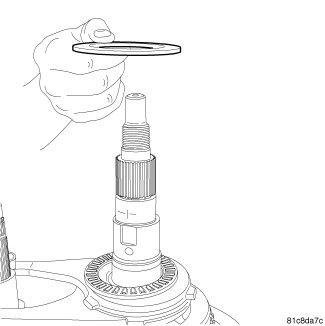

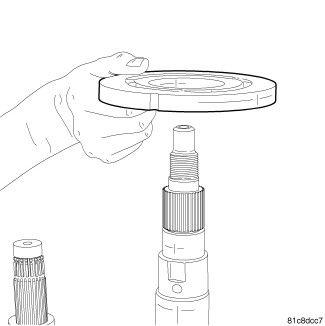

14. Remove the upper thrust bearing race.

    Courtesy of CHRYSLER GROUP, LLC

15. Remove the upper thrust bearing.

    Courtesy of CHRYSLER GROUP, LLC

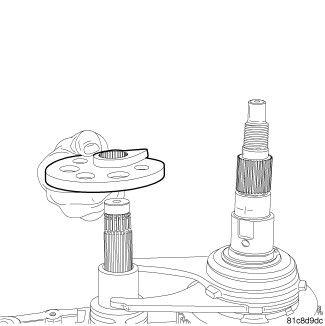

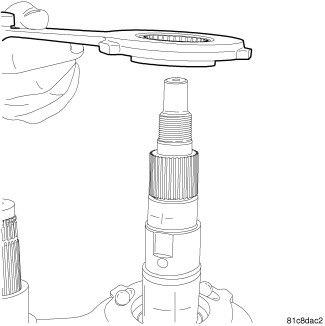

16. Remove the upper shift lever.

    Courtesy of CHRYSLER GROUP, LLC

17. Remove the shift lever balls.

    Courtesy of CHRYSLER GROUP, LLC

18. Remove the lower shift lever.

    Courtesy of CHRYSLER GROUP, LLC

19. Remove the lower thrust bearing.

    Courtesy of CHRYSLER GROUP, LLC

20. Remove the lower thrust bearing race.

    Courtesy of CHRYSLER GROUP, LLC

21. Remove the clutch apply piston.

    Courtesy of CHRYSLER GROUP, LLC

22. Remove the clutch return spring.

    Courtesy of CHRYSLER GROUP, LLC

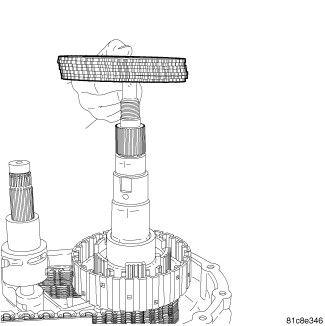

23. Remove the clutch pack.

    Courtesy of CHRYSLER GROUP, LLC

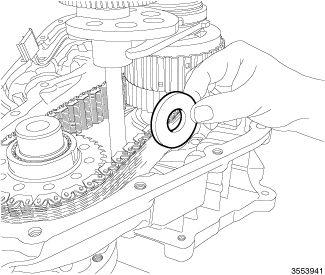

24. Remove the clutch drum thrust washer (1).

    Courtesy of CHRYSLER GROUP, LLC

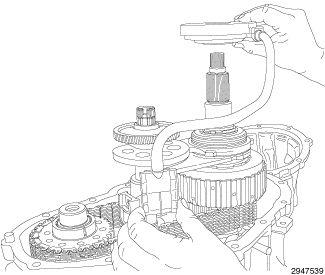

25. Remove the welded front drive sprocket and drum assembly, drive chain, and driven sprocket as one.

    Courtesy of CHRYSLER GROUP, LLC

26. Remove the shift shaft spacer.

    Courtesy of CHRYSLER GROUP, LLC

27. Remove the shift shaft.

    Courtesy of CHRYSLER GROUP, LLC

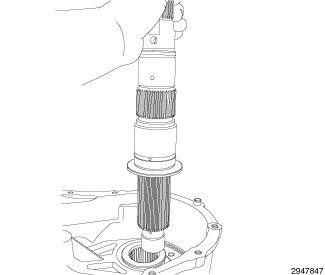

28. Remove the main shaft from the transfer case.

    Courtesy of CHRYSLER GROUP, LLC

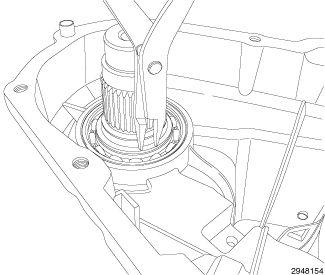

29. Remove the retaining snap ring from the front output shaft.

    Courtesy of CHRYSLER GROUP, LLC

30. Remove the front output shaft from the transfer case.

    Courtesy of CHRYSLER GROUP, LLC

31. Using a suitable pry tool or a screw mounted in a slide hammer, remove the input gear seal. Remove and discard the input gear snap ring (1).

ASSEMBLY

Courtesy of CHRYSLER GROUP, LLC

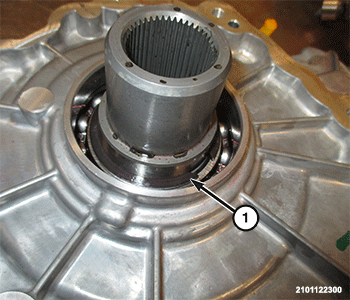

1. While holding the retaining ring tabs apart with suitable snap-ring pliers, remove the input shaft bearing (1) from the front case (2).
2. Transfer the retaining ring to the new housing, if necessary, and install the bearing into the front case.

   Courtesy of CHRYSLER GROUP, LLC

3. Using a suitable pry tool or a screw mounted in a slide hammer, remove the front output shaft seal.
4. Using (special tool #6061, Installer, Cup) inverted, and (special tool #C-4171, Driver Handle, Universal), remove front output shaft bearing.

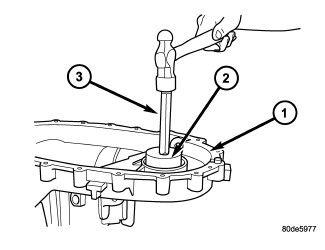

5. Start front output shaft bearing in case (2). Then seat bearing with (special tool #C-4171, Driver Handle, Universal) (3) and (special tool #C-4210, Installer, Seal) (2).
6. Install the front output shaft seal using (special tool #6560, Installer, Bearing Cup).

   Courtesy of CHRYSLER GROUP, LLC

7. Using a suitable pry tool or a screw mounted in a slide hammer, remove the rear output shaft seal.
8. Remove the rear output shaft bearing from the rear case using (special tool #L-4408, Installer, Bearing) (2) inverted and (special tool #C-4171, Driver Handle, Universal) (1).
9. Install the rear output shaft bearing into the rear case using (special tool #6061, Installer, Cup) inverted and (special tool #C-4171, Driver Handle, Universal).

   Courtesy of CHRYSLER GROUP, LLC

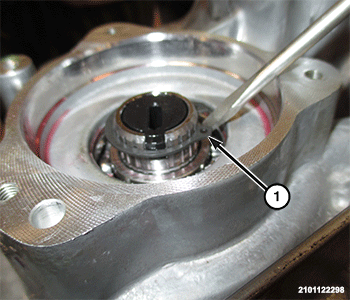

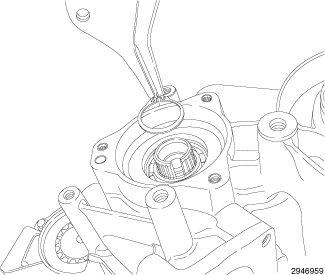

10. Remove shift shaft bearing snap ring.

    Courtesy of CHRYSLER GROUP, LLC

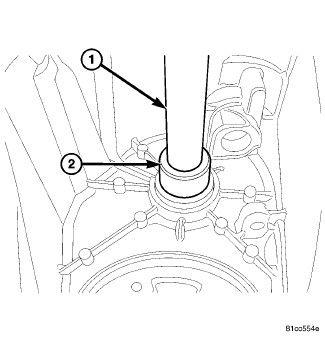

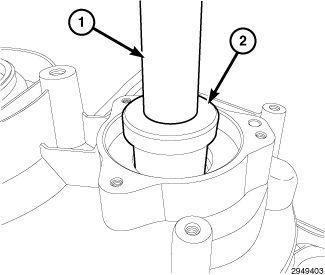

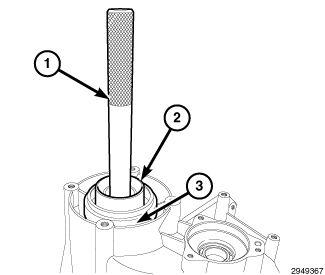

11. Remove shift shaft bearing using (special tool #C-4171, Driver Handle, Universal) (1) and (special tool #5066, Installer, Bushing) (2).

    Courtesy of CHRYSLER GROUP, LLC

12. Install shift shaft bearing using (special tool #C-4171, Driver Handle, Universal) (1) and (special tool #5066, Installer, Bushing) (2) inverted.

    Courtesy of CHRYSLER GROUP, LLC

13. Install shift shaft bearing snap ring.

    Courtesy of CHRYSLER GROUP, LLC

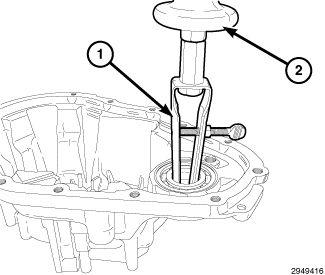

14. Remove front output shaft rear bearing from housing using (special tool #7794-A, Remover, Seal) (1) and (special tool #C-637, Slide Hammer, Universal) (2).

    Courtesy of CHRYSLER GROUP, LLC

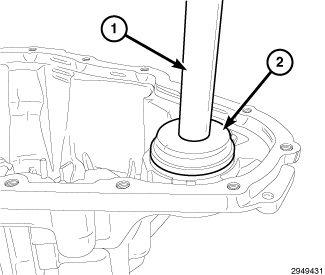

15. Install front output shaft rear bearing in housing using (special tool #6061, Installer, Cup) (2) inverted and (special tool #C-4171, Driver Handle, Universal) (1).

    Courtesy of CHRYSLER GROUP, LLC

16. Install the front output shaft flange into the front housing.

    Courtesy of CHRYSLER GROUP, LLC

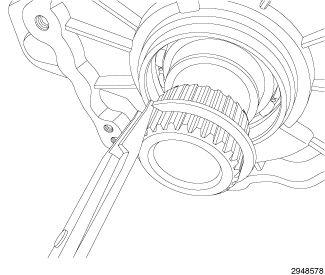

17. Install the front output shaft snap ring.

    Courtesy of CHRYSLER GROUP, LLC

18. Install the input gear snap ring.

    Courtesy of CHRYSLER GROUP, LLC

19. Using (special tool #9672, Installer, Seal) (2) and (special tool #C-4171, Driver Handle, Universal) (1), install a new input shaft seal.

    Courtesy of CHRYSLER GROUP, LLC

20. Install the main shaft into the transfer case.

    Courtesy of CHRYSLER GROUP, LLC

21. Install the shift shaft.

    Courtesy of CHRYSLER GROUP, LLC

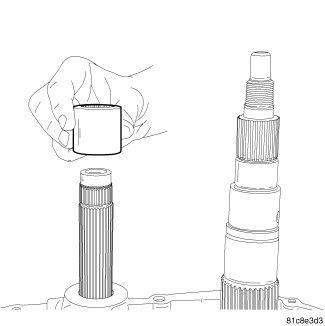

22. Install the shift shaft spacer.

    Courtesy of CHRYSLER GROUP, LLC

    NOTE:

    There is a blue link on one side of the chain. This blue link MUST be installed facing upward.

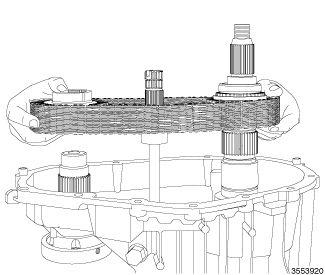

23. Install the welded front drive sprocket and drum assembly, drive chain, and driven sprocket as one.

    Courtesy of CHRYSLER GROUP, LLC

24. Install the clutch drum thrust washer (1).

    Courtesy of CHRYSLER GROUP, LLC

25. Starting with a friction disc and ending with a friction disc, install the clutch pack.

    Courtesy of CHRYSLER GROUP, LLC

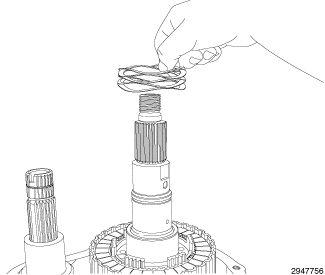

26. Install the clutch return springs.

    Courtesy of CHRYSLER GROUP, LLC

27. Install the clutch apply piston with the lettering up and the stepped face down.

    Courtesy of CHRYSLER GROUP, LLC

28. Install the lower bearing race with the race fitting into the grove in the reaction plate.

    Courtesy of CHRYSLER GROUP, LLC

29. Install the lower bearing.

    Courtesy of CHRYSLER GROUP, LLC

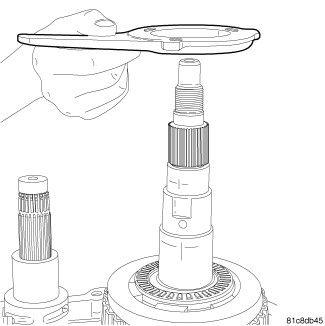

30. Install the lower shift lever.

    Courtesy of CHRYSLER GROUP, LLC

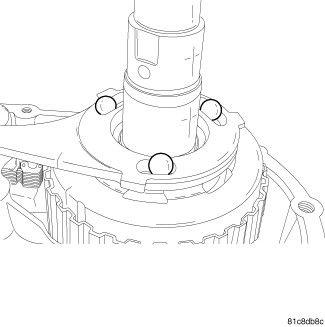

31. Install the shift lever balls into their pockets.

    Courtesy of CHRYSLER GROUP, LLC

32. Install the upper shift lever.

    Courtesy of CHRYSLER GROUP, LLC

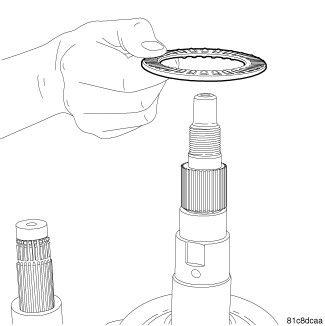

33. Install the upper thrust bearing.

    Courtesy of CHRYSLER GROUP, LLC

34. Install the upper bearing race.

    Courtesy of CHRYSLER GROUP, LLC

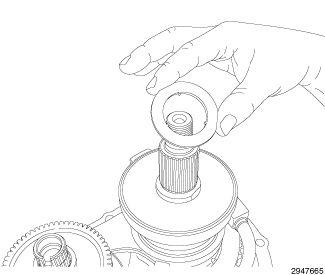

35. Install the thrust collar.

    Courtesy of CHRYSLER GROUP, LLC

36. Install the clutch shim.

    Courtesy of CHRYSLER GROUP, LLC

37. Install clutch upper snap ring.
    NOTE:

    The clutch cam has the word "FRONT" stamped into. This identifies the orientation of the clutch cam to the front of the transfer case. Before installing the clutch cam, note the orientation of the clutch cam inner splines to the outer splines on the shift shaft. Install it such that the roller falls into low point of clutch cam.

    Courtesy of CHRYSLER GROUP, LLC

38. Install the clutch cam.
    NOTE:

    Before installing the worm drive gear, note the orientation of the worm drive gear inner splines to the outer splines on the shift shaft.

    Courtesy of CHRYSLER GROUP, LLC

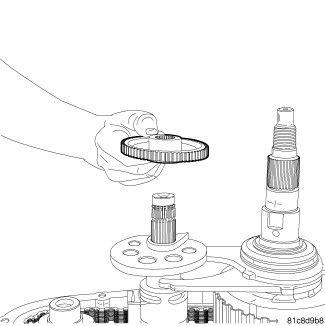

39. Install the worm drive gear.

    Courtesy of CHRYSLER GROUP, LLC

40. Install the magnet into the magnet pocket.

    Courtesy of CHRYSLER GROUP, LLC

41. Install the oil pump assembly.

    Courtesy of CHRYSLER GROUP, LLC

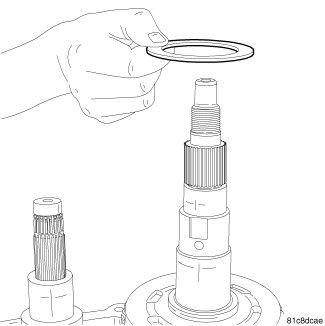

42. Install the output shaft thrust washer.

    Courtesy of CHRYSLER GROUP, LLC

    NOTE:

    Do not use excessive amount of sealer as excess could be displaced into the oil pump. Keep sealer bead width to maximum of 3 mm (1/8 inch).

43. Apply bead of Mopar® Gasket Maker, or equivalent, to one of the mating surfaces of the front or rear housing.

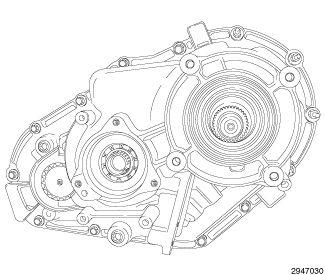

44. Install the rear housing onto the front housing. Install the housing bolts. Tighten housing bolts in a crisscross pattern to the proper specification. Refer to TORQUE SPECIFICATIONS  .
    CAUTION:

    Carefully align and thread (rotate counterclockwise) the worm shaft to install it into the transfer case. Failure to follow this caution may result in parts damage.

    Courtesy of CHRYSLER GROUP, LLC

45. Install the worm shaft into the transfer case.
    NOTE:

    It may be necessary to apply slight inward pressure on the worm shaft to seat the snap ring.

    Courtesy of CHRYSLER GROUP, LLC

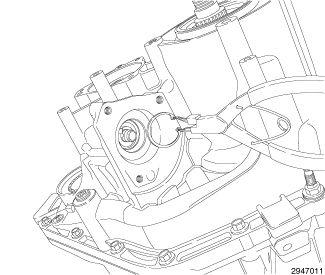

46. Install the worm shaft snap ring.

    Courtesy of CHRYSLER GROUP, LLC

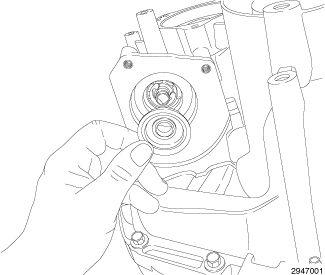

47. Using a suitable installer, install the shift motor seal.

    Courtesy of CHRYSLER GROUP, LLC

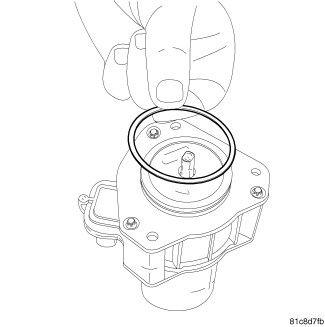

48. Install a NEW  O-ring onto the shift motor.

    Courtesy of CHRYSLER GROUP, LLC

    NOTE:

    Note the orientation of the shift motor shaft to the worm gear shaft.

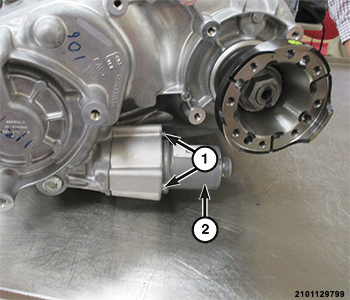

49. Install the shift motor onto the transfer case. Install the shift motor bolts. Tighten the shift motor bolts to the proper specification. Refer to TORQUE SPECIFICATIONS  .

    Courtesy of CHRYSLER GROUP, LLC

    NOTE:

    It may be necessary to pull out on the shift shaft to properly seat the shift shaft snap ring.

50. Install the shift shaft snap ring.

    Courtesy of CHRYSLER GROUP, LLC

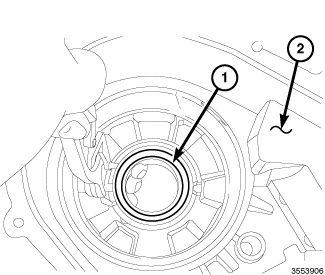

51. Align arrow (1) on the encoder shaft with alignment mark (2) prior to installing the encoder.
    NOTE:

    Before installing the encoder onto the transfer case, be certain to align the encoder shaft to the shift shaft and the dowel on the encoder to the hole in the case accordingly.

    Courtesy of CHRYSLER GROUP, LLC

52. Install the encoder onto the rear transfer case housing. Install the encoder screws. Tighten the screws to the proper specification. Refer to TORQUE SPECIFICATIONS  .

    Courtesy of CHRYSLER GROUP, LLC

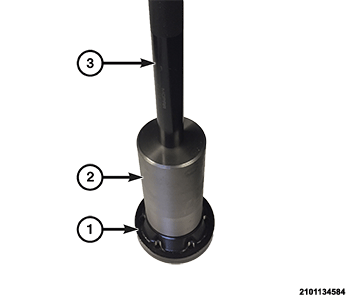

53. Using the (special tool #2049400210, Installer, Output Shaft Oil Slinger) (2) and (special tool #C-4171, Driver Handle, Universal) (3) install the NEW  output shaft oil slinger seal (1).

    Courtesy of CHRYSLER GROUP, LLC

54. Install the companion flange (2) with a NEW  pinion flange nut and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

    Courtesy of CHRYSLER GROUP, LLC

55. Using (special tool #C-3281, Holder, Flange) (1), install the rear output flange with a NEW  rear output flange nut (1) and tighten the nut to the proper specification. Refer to TORQUE SPECIFICATIONS  .
