Removal And Installation

REMOVAL

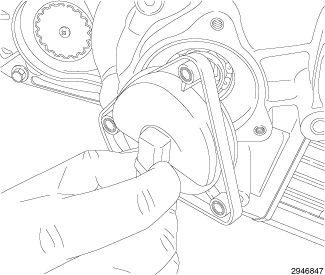

Courtesy of CHRYSLER GROUP, LLC

1. Remove the wiring harness electrical connector from the encoder.
2. Remove the screws securing the encoder to the rear transfer case housing.
3. Remove the encoder from the transfer case.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

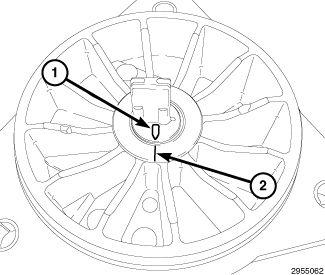

1. Align arrow (1) on the encoder shaft with alignment mark (2) prior to installing the encoder.

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   Before installing the encoder onto the transfer case, be certain to align the encoder shaft to the shift shaft and the dowel on the encoder to the hole in the case accordingly.

2. Install the encoder onto the rear transfer case housing.
3. Install the encoder screws. Tighten the screws to the proper specification. Refer to TORQUE SPECIFICATIONS  .
4. Install the electrical wiring harness connector onto the encoder.
