Sensor, Oil Temperature: Installation

Courtesy of CHRYSLER GROUP, LLC

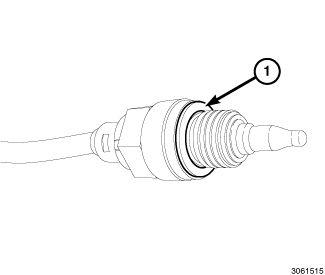

1. The oil temperature sensor gasket (1) can be reused if not damaged. Lightly lubricate the sensor threads with clean engine oil.

   Courtesy of CHRYSLER GROUP, LLC

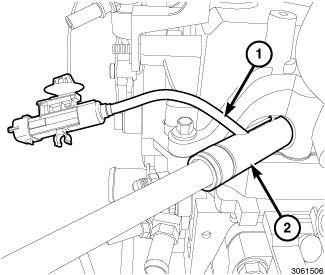

2. Use an appropriate socket (2) and install the oil temperature sensor (1). Tighten the oil temperature sensor to the proper specifications.

   Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

3. Engage the oil temperature harness connector to the bracket (1).
4. Connect and lock the oil temperature sensor harness connector (2).
5. Install the clean air hose and engine cover. Refer to HOSE, CLEAN AIR, INSTALLATION .
6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
7. Start engine and check for leaks.
