Sensor, Crankcase Pressure: Removal
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

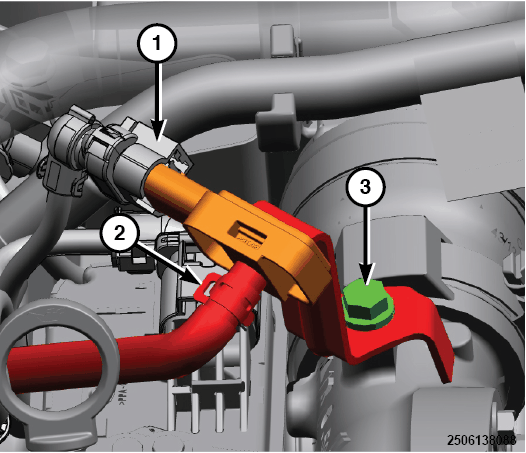

- Disconnect the Crankcase Pressure Sensor wire harness connector (1).
- Loosen the clamp and disconnect the hose (2) from crankcase heater.
- Remove the bolt (3) and remove the Crankcase Pressure Sensor.

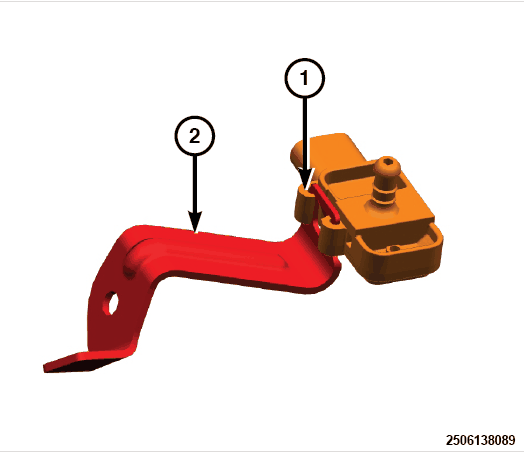

- Open the clip (1) and remove the Crankcase Pressure Sensor from bracket (2).
