Isolator, Rear CROSSMEMBER, Frame: Removal

Remove the rear crossmember. Refer to CROSSMEMBER, REAR SUSPENSION, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Prior to using special tools, lubricate Press, Ball Joint: C-4212F (C) threads to provide ease of use and promote tool longevity.

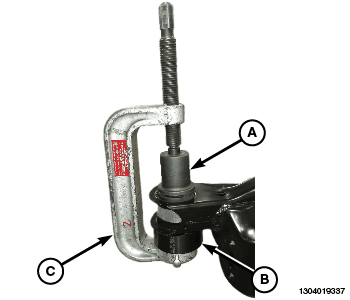

Assemble tools over isolator crossmember assembly as shown:
1. (special tool #9958-3, Installer, Bushing)
2. (special tool #10106-2, Receiver, Depth Setting)
3. (special tool #C-4212F, Press, Ball Joint)
Tighten Press, Ball Joint C-4212F (C) screw-drive, pressing isolator out of the crossmember.
