Sensor, Differential Pressure: Description

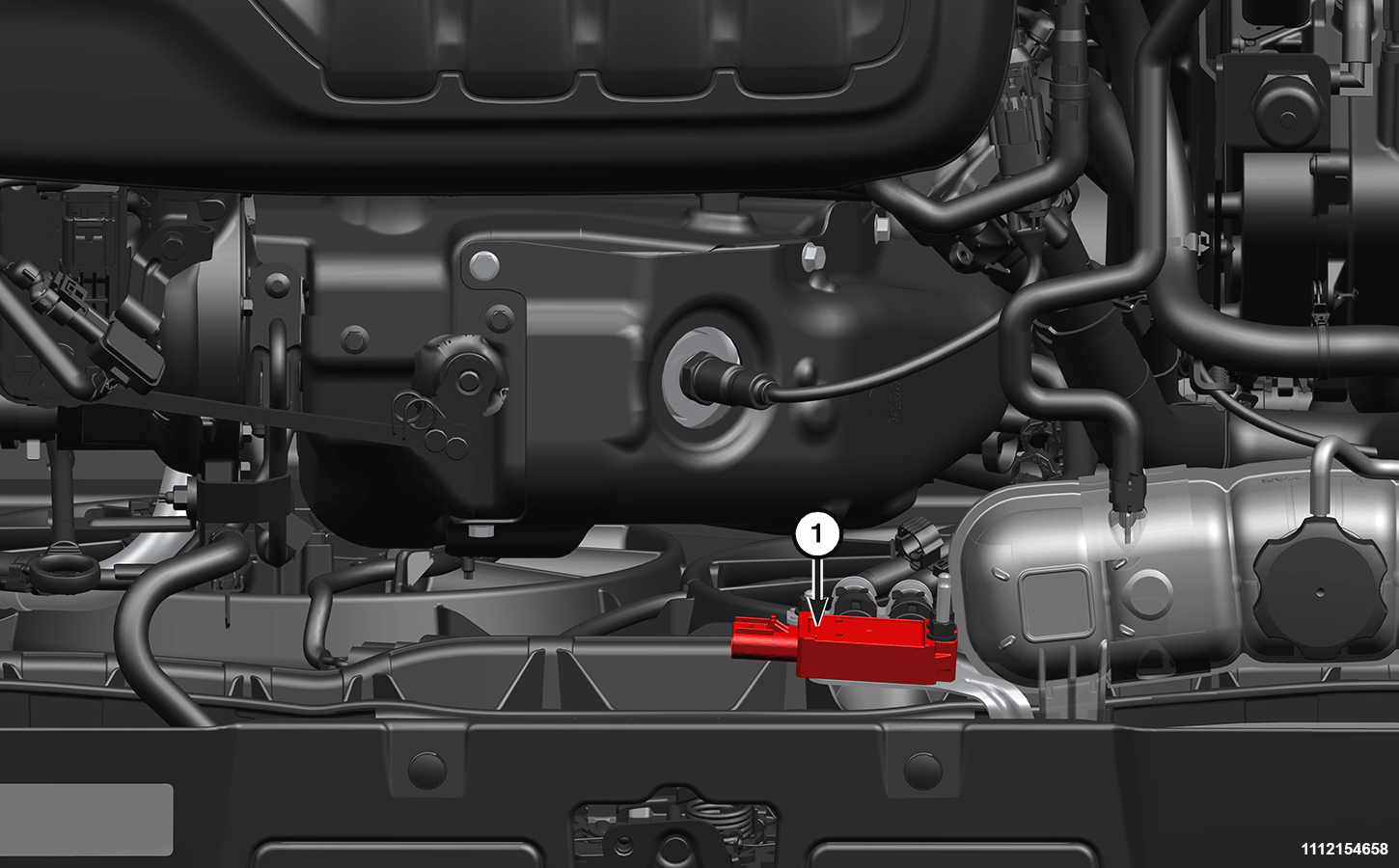

The Differential Pressure Sensor (DPS) (1) is located next to the engine coolant recovery bottle. The DPS is mounted to a bracket that is secured in tandem with the coolant recovery bottle to the Front End Module (FEM) support. The DPS has two tubes attached to the bottom that are used to monitor the differential pressure of the Gas Particulate Filter (GPF).
