Sensor, Exhaust Temperature: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
    GC0186948Courtesy of CHRYSLER GROUP, LLC
  2. Remove the 10 push pin fasteners (1) and the radiator closeout panel (2).

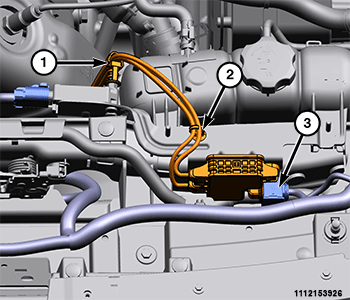

    GC0187195Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the exhaust gas temperature sensor wire harness connector (3).
  4. Detach the two wire harness retainers (1, 2).

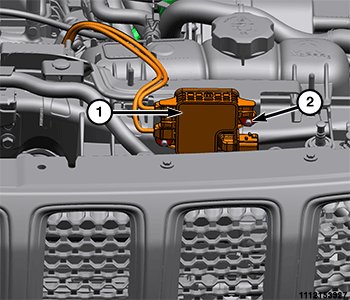

    GC0186446Courtesy of CHRYSLER GROUP, LLC
  5. Remove the two nuts (1) securing the exhaust temperature sensor module (1).

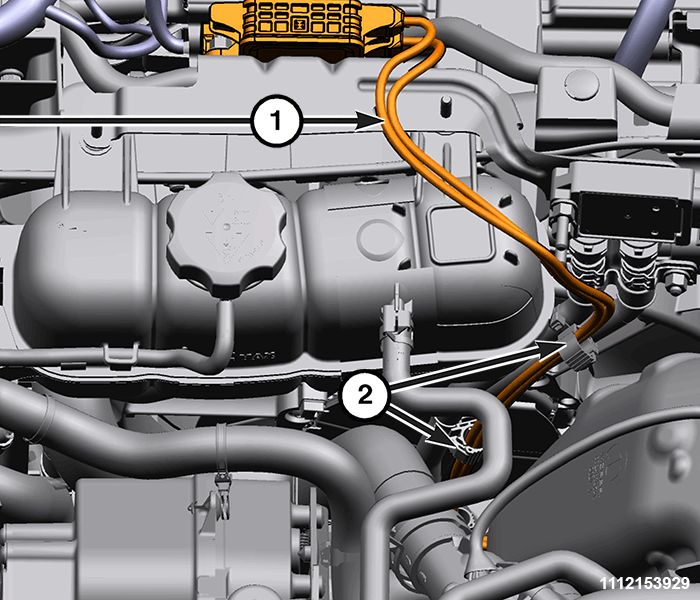

    GC0187197Courtesy of CHRYSLER GROUP, LLC
  6. Open the wire harness retainers (2) and remove the wire harness (1).
  7. Remove the belly pan. Refer to BELLY PAN, REMOVAL .

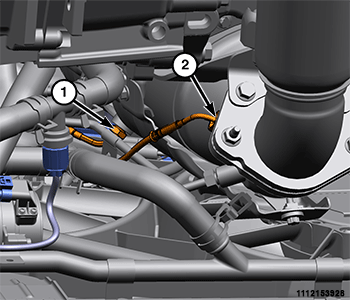

    GC0186498Courtesy of CHRYSLER GROUP, LLC
  8. Remove downstream exhaust gas temperature sensor (2) from the catalytic converter.
  9. Remove the upstream exhaust gas temperature sensor (1) from the catalytic converter.
  10. Remove the support and lower the vehicle.
  11. Remove the exhaust gas temperature sensors with the module from the vehicle.
