Air Cleaner: Installation

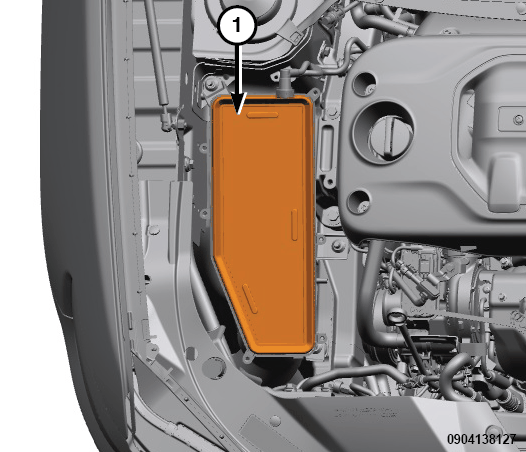

GC0186866Courtesy of CHRYSLER GROUP, LLC
  1. Install a new air cleaner element (1) into the air cleaner body.

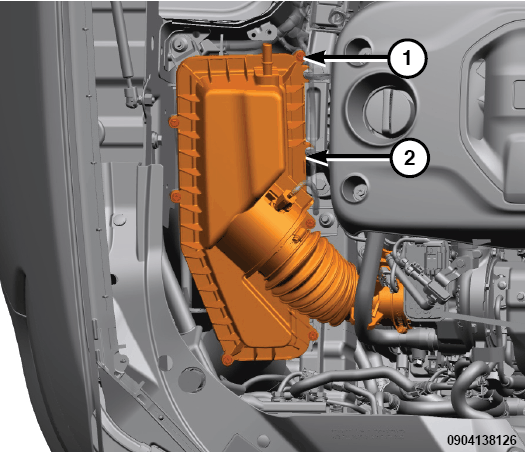

    GC0186544Courtesy of CHRYSLER GROUP, LLC
  2. Seat the cover (2) onto the air cleaner body and tighten the six captured retaining bolts (1) to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).

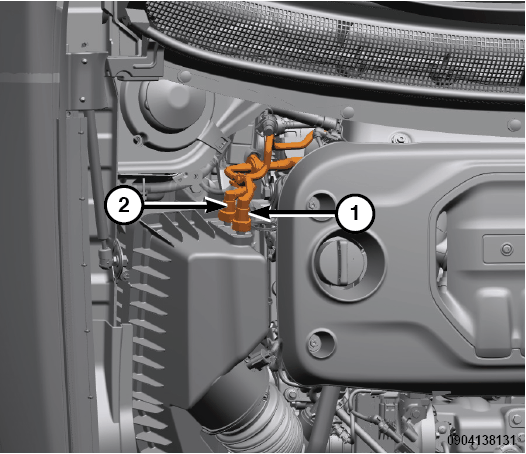

    GC0186571Courtesy of CHRYSLER GROUP, LLC
  3. Connect the fuel vapor purge hose quick coupling (2) to the air cleaner body cover.
  4. Connect the boost vacuum purge hose quick coupling (1) to the air cleaner body cover.
