Tube, Intake Air: Installation

Courtesy of CHRYSLER GROUP, LLC

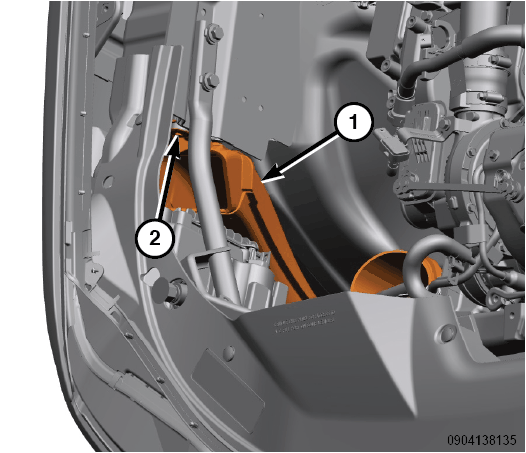

1. Place the intake air tube (1) back in position and engage the rubber grommet.

   Courtesy of CHRYSLER GROUP, LLC

2. Install the push pin (2) to the intake air tube (1).
3. Install the air cleaner body. Refer to INSTALLATION  .
