Top Engine Cover

GC0186883Courtesy of CHRYSLER GROUP, LLC

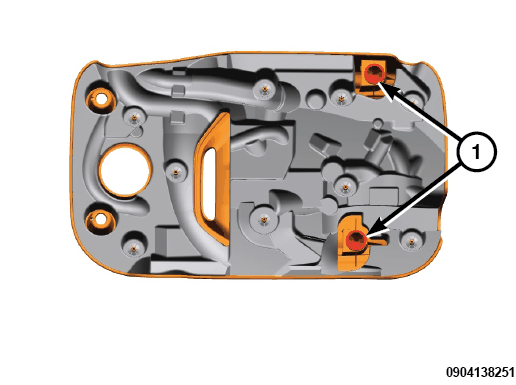

  1. Lubricate the two rubber mount sockets (1) on the engine cover with Mopar® Rubber Bushing Installation Lube.
    GC0186804Courtesy of CHRYSLER GROUP, LLC

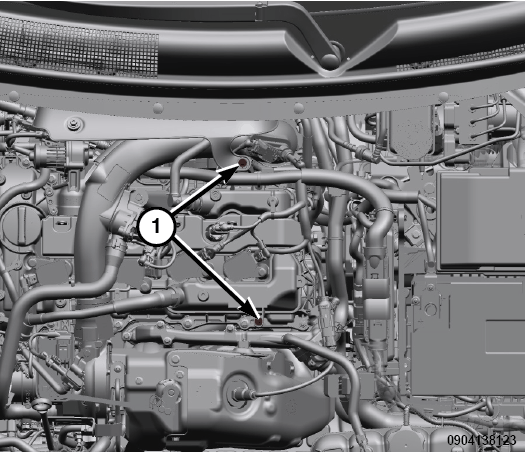

  2. Align the rubber mount sockets of the engine cover to the two ball studs (1) on the cylinder head cover and press firmly downwards.
    GC0186517Courtesy of CHRYSLER GROUP, LLC

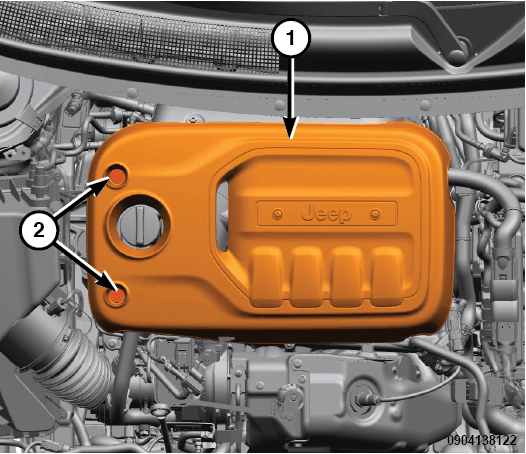

  3. Install the two top engine cover bolts (2) and tighten to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
