Left Balance Shaft

multimedia:A supplement to the article is available.
CAUTION:

Always replace the balance shaft bearings whenever the balance shaft is removed. The bearing assembly clasp may have worn which if reused can result in the bearing assembly lifting off the balance shaft journal during balance shaft installation which will cause subsequent engine failure.

  1. Remove the engine oil pump. Refer to PUMP, ENGINE OIL, REMOVAL .
    GC0180964Courtesy of CHRYSLER GROUP, LLC
  2. Remove the retaining bolt (1a) and remove the left balance shaft assembly (1b).
    GC0182367Courtesy of CHRYSLER GROUP, LLC

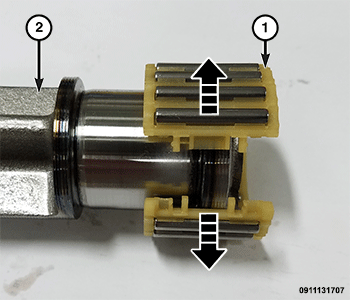

  3. Remove and discard both balance shaft needle bearings (1) from the balance shaft (2).
