Ring(S), Piston: Installation

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Typical piston shown in illustration.

If required, fit new rings to the piston. Refer to ENGINE/ENGINE BLOCK/RING(S), PISTON - STANDARD PROCEDURE .
CAUTION:
To avoid damage to the piston rings, they must be installed in the following order:
- Oil ring expander (5)
- Oil ring lower side rail (4)
- Oil ring upper side rail (3)
- No. 2 (intermediate) piston ring (2)
- No. 1 (upper) piston ring (1)
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Do not use a piston ring expander to install the oil ring side rails.

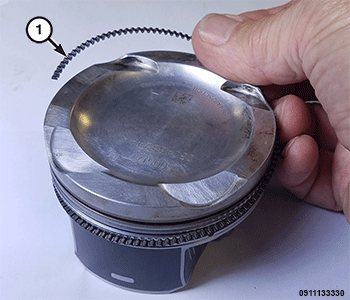

Install the oil ring expander (1).

Courtesy of CHRYSLER GROUP, LLC

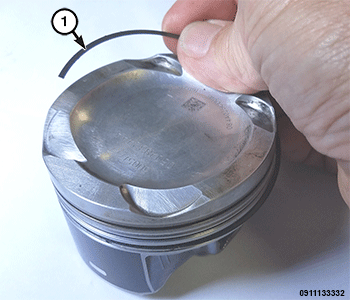

Install the oil ring lower side rail (1) by placing one end between the piston ring groove and the oil ring expander. Hold this end firmly and press down the portion to be installed until the side rail is in position.

Courtesy of CHRYSLER GROUP, LLC

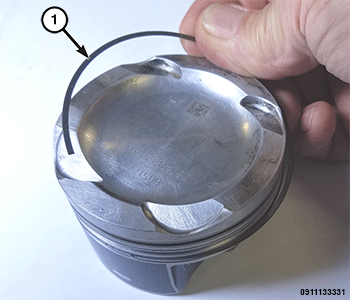

Install the oil ring upper side rail (1) in the same manner as the lower side rail.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Install the No. 1 (upper) and No. 2 (intermediate) piston rings with the TOP marking (2) facing up, towards the top of the piston.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
The No. 2 (intermediate) piston ring (1) is a micro napier design and has a greater radial wall thickness than the No. 1 (upper) piston ring.

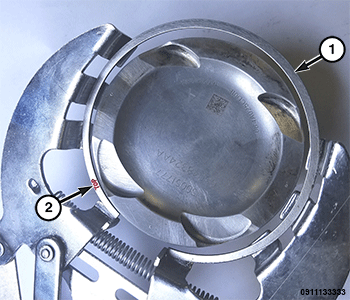

Install the No. 2 (intermediate) piston ring (1) with the TOP marking (2) facing up using a ring expander tool.

Courtesy of CHRYSLER GROUP, LLC

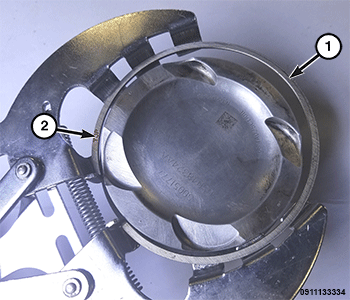

Install the No. 1 (upper) piston ring (1) with the TOP marking (2) facing up using a ring expander tool.
Rotate the rings around the piston, the rings must rotate in the grooves without binding.

Courtesy of CHRYSLER GROUP, LLC
Position the piston ring end gaps as follows:
- Oil ring expander gap (5)
- Oil ring lower side rail end gap (4)
- Oil ring upper side rail end gap (1)
- No. 2 (intermediate) ring end gap (5)
- No. 1 (upper) ring end gap (2)
Install the piston and connecting rod(s). Refer to INSTALLATION .
