Manifold, Intake: Installation

GC0181617Courtesy of CHRYSLER GROUP, LLC

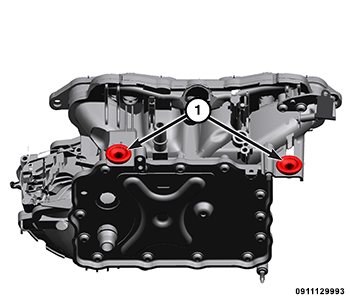

  1. If removed, install the side engine cover rubber isolators (1).
    GC0183641Courtesy of CHRYSLER GROUP, LLC

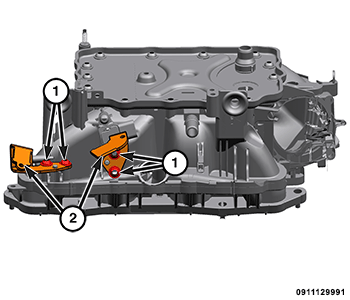

  2. If removed, install the EVAP solenoid valve and OBD vent valve mounting brackets (2) and securely tighten the screws (1).
    GC0186518Courtesy of CHRYSLER GROUP, LLC

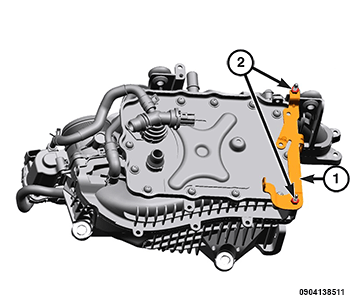

  3. If removed, install the mounting bracket (1) and securely tighten the nuts (2).

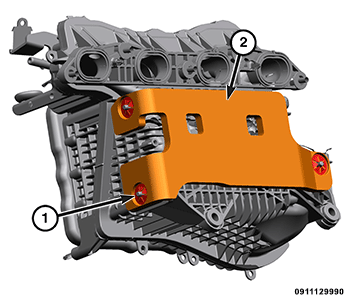

    GC0183353Courtesy of CHRYSLER GROUP, LLC
  4. If removed, install the heat shield (2) with the push-nuts (1).

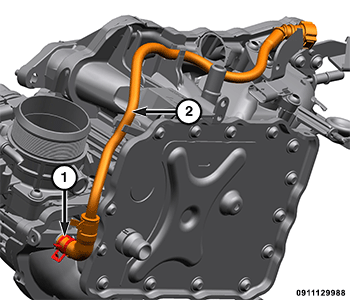

    GC0182164Courtesy of CHRYSLER GROUP, LLC
  5. If removed, install the fuel vapor pipe in position and tighten the band clamp (1).

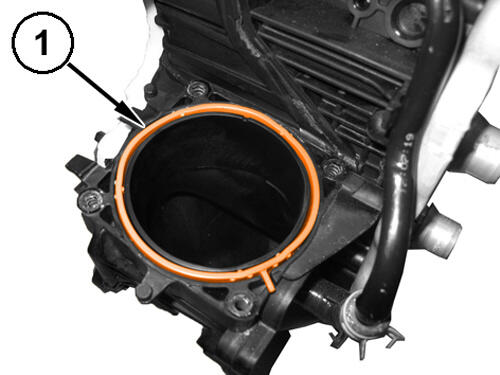

    GC0180979Courtesy of CHRYSLER GROUP, LLC
  6. If the throttle body was removed, install a new throttle body gasket (1).

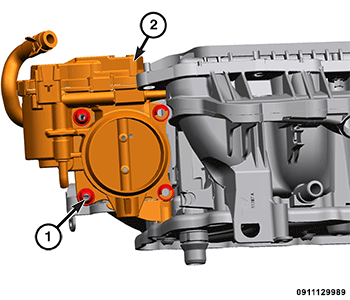

    GC0181566Courtesy of CHRYSLER GROUP, LLC
  7. If removed, install the throttle body (2) and tighten the bolts (1) in a crisscross pattern to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
    GC0182949Courtesy of CHRYSLER GROUP, LLC

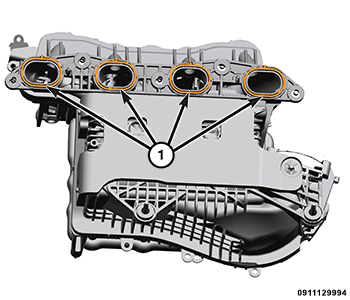

  8. Install new seals (1) on the intake manifold.

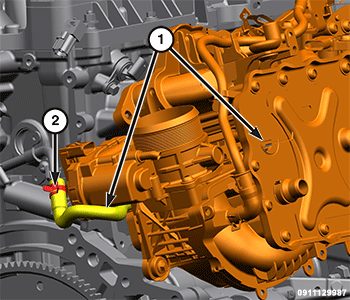

    GC0182295Courtesy of CHRYSLER GROUP, LLC
  9. Install the intake manifold (1) into position, connect the coolant outlet pipe to the throttle body and tighten the band clamp (2).

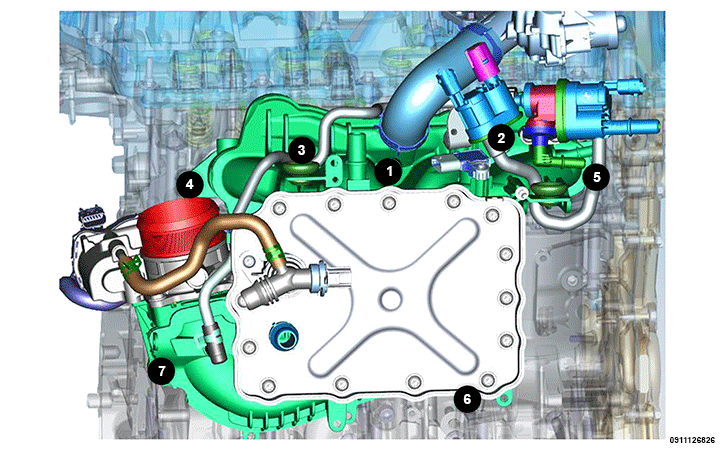

    Fig 1: Intake Manifold Bolts Tightening Sequence
    GC0181264Courtesy of CHRYSLER GROUP, LLC
  10. Install the intake manifold bolts and tighten in the sequence shown in illustration to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
    GC0186530Courtesy of CHRYSLER GROUP, LLC
  11. Move the right side of the engine rearward back into its proper position.

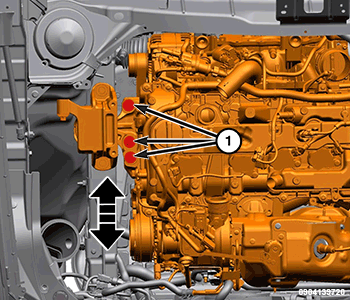

  12. Install the three right engine mount isolator to bracket bolts (1) and tighten to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).

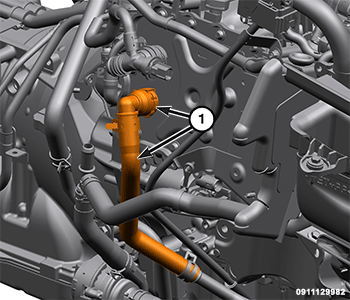

    GC0182476Courtesy of CHRYSLER GROUP, LLC
  13. Connect the quick connector of the coolant return pipe (1) to the charge air cooler and engage the retaining clip.
    GC0181771Courtesy of CHRYSLER GROUP, LLC

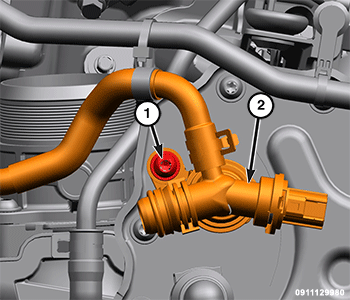

  14. Install the Y-fitting (2) to the charge air cooler and engage the retaining clip.
  15. Install and securely tighten the bolt (1).
    GC0181037Courtesy of CHRYSLER GROUP, LLC

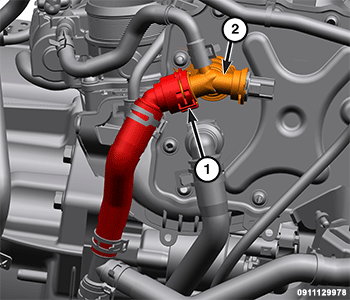

  16. Connect the quick connector of the coolant supply pipe (1) to the Y-fitting (2) and engage the retaining clip.

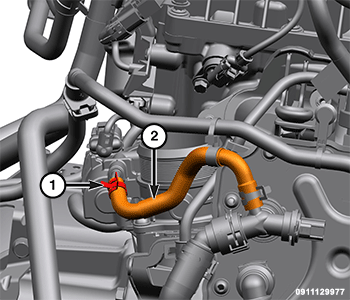

    GC0182459Courtesy of CHRYSLER GROUP, LLC
  17. Connect the coolant supply pipe (2) to the throttle body and tighten the band clamp (1).

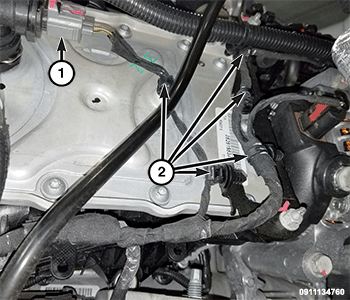

    GC0183750Courtesy of CHRYSLER GROUP, LLC
  18. Connect the electrical connection (1) to the charge air cooler coolant temperature sensor.
  19. Engage the wire harness retainers (2).

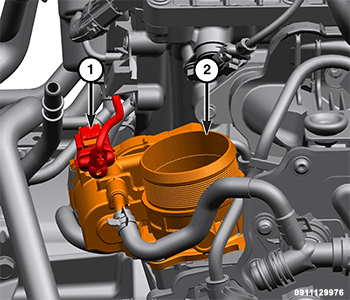

    GC0182551Courtesy of CHRYSLER GROUP, LLC
  20. Connect the electrical connection (1) to the throttle body (2).
  21. Install the intake Camshaft Position (CMP) sensor. Refer to SENSOR, CAMSHAFT POSITION, INSTALLATION .
  22. Install the Temperature and Manifold Air Pressure (TMAP) sensor. Refer to SENSOR, TMAP-INTAKE MANIFOLD, INSTALLATION .
  23. Install the EVAP purge solenoid and the OBD vent valve. Refer to SOLENOID, EVAPORATIVE EMISSIONS PURGE, INSTALLATION .
  24. Install the EGR valve. Refer to VALVE, EXHAUST GAS RECIRCULATION (EGR), INSTALLATION .
  25. Install the air outlet pipe from the turbocharger to the throttle body. Refer to COOLER AND HOSES, CHARGE AIR, INSTALLATION .
  26. Install the air cleaner body. Refer to INSTALLATION  .
  27. Install the side and top engine covers. Refer to COVER, ENGINE, INSTALLATION .
  28. Fill the cooling system. Refer to COOLING SYSTEM FILL 2.0L GMET4 .
  29. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  30. Remove the support and lower the vehicle.
