Sensor, Turbo Boost Pressure: Installation

Courtesy of CHRYSLER GROUP, LLC

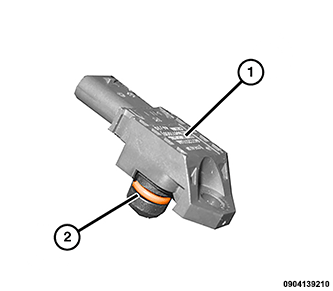

1. Install a new O-ring (2) on the turbo boost pressure sensor (1).

   Courtesy of CHRYSLER GROUP, LLC

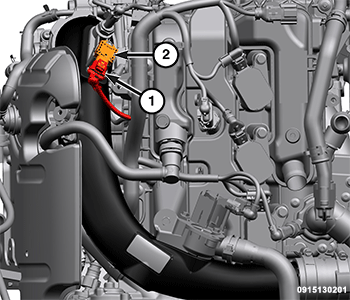

2. Install the turbo boost pressure sensor (2) complete with new O-ring and securely tighten the bolt (1).

   Courtesy of CHRYSLER GROUP, LLC

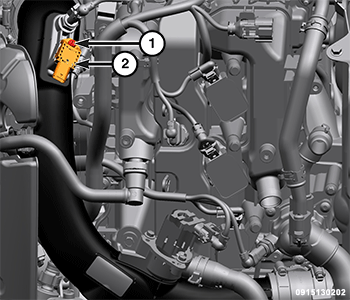

3. Connect and lock the wire harness connector (1) to the turbo boost pressure sensor (2).
4. Install the top engine cover. Refer to COVER, ENGINE, INSTALLATION .
5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
