Pulley, Idler: Installation

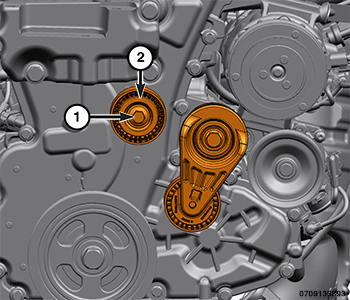

GC0186718Courtesy of CHRYSLER GROUP, LLC
  1. Install the idler pulley (2) and tighten the bolt (1) to proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
  2. Install the serpentine belt. Refer to INSTALLATION  .
