Pedal, Accelerator: Installation

Courtesy of CHRYSLER GROUP, LLC

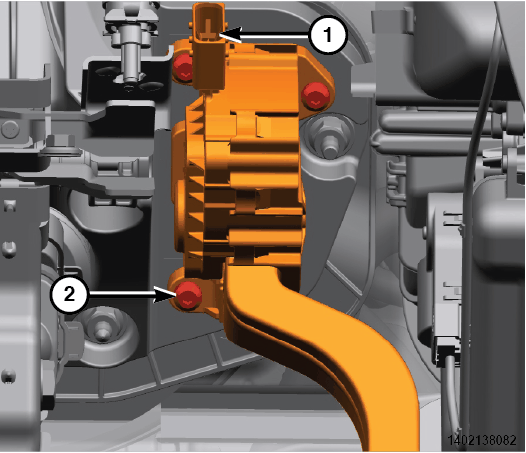

1. Install the accelerator pedal. Tighten the three screws (2) to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
2. Connect the accelerator pedal wire harness connector (1).
3. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
4. Use a scan tool and perform the APPS RELEARN function.
