Switch, Seat: Installation

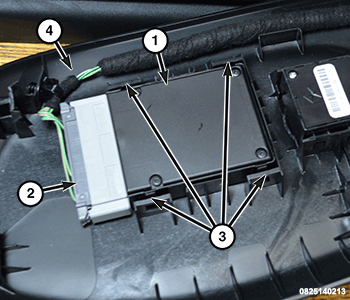

GC0186687Courtesy of CHRYSLER GROUP, LLC
  1. Install the power seat switch (1) by fully engaging it to the seat switch tabs (3) located on the side shield (4).
  2. Connect the wire harness connector (2).
  3. Install the side shield. Refer to SIDE SHIELDS, SEAT, POWER, INSTALLATION .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
