Panel, Trim: Installation

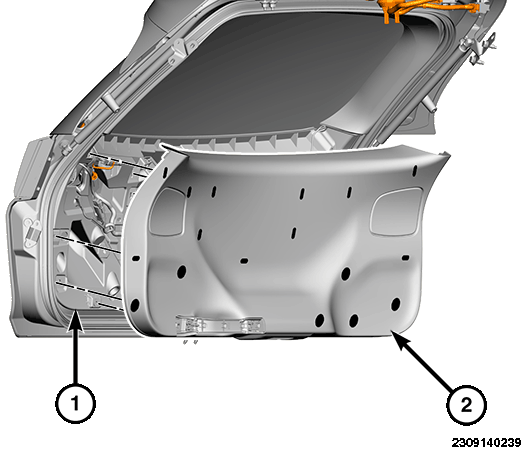

- Position the liftgate trim panel (2) on the liftgate (1).

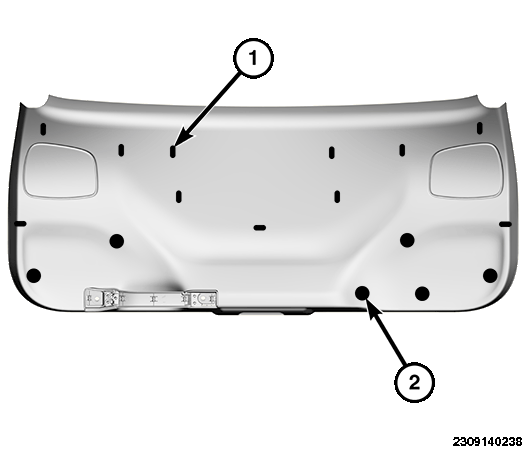

- With the use of hand pressure, press firmly and evenly on the trim panel over each of the retaining clips (1) and push fasteners (2) locations until the clips are seated fully in the holes on the inside of the liftgate and side trim panels.

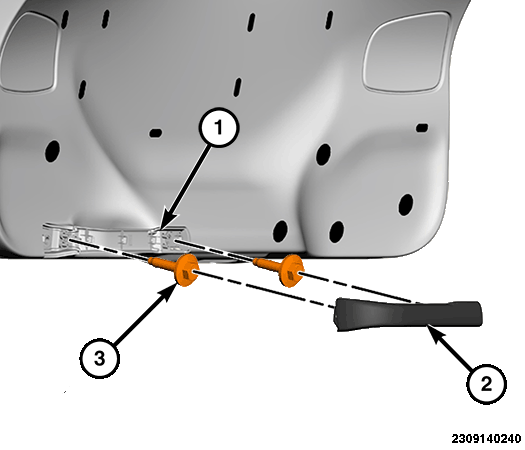

- Install the fasteners (3) into the grab handle (1) and tighten securely.
- Position the interior grab handle bezel (2) retainers to the interior grab handle (1).
- Seat the interior grab handle bezel (2) fully.
