DECKLID/Hatch/Liftgate/Tailgate/Swing Gate: Spoiler: Installation

Courtesy of CHRYSLER GROUP, LLC

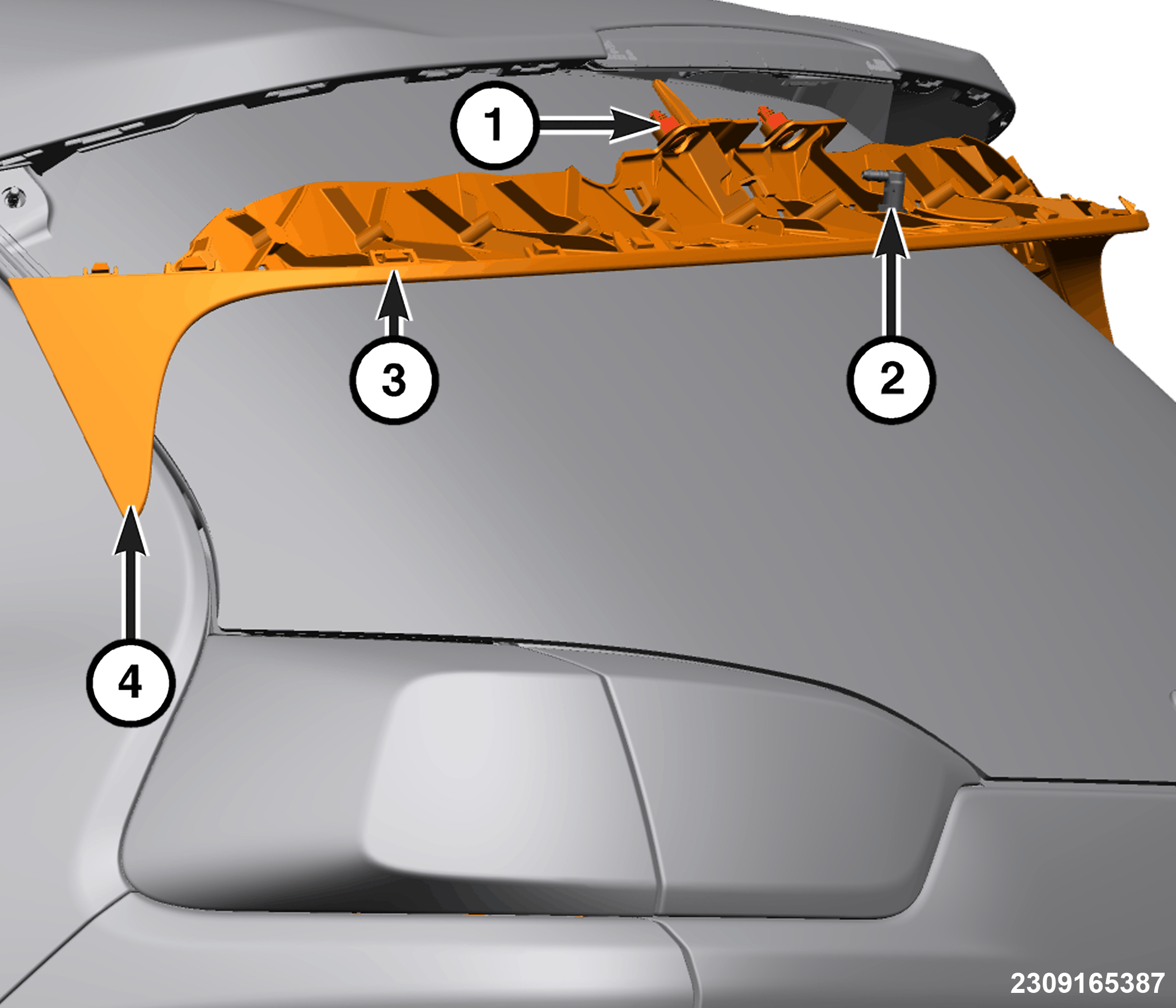

1. Position the spoiler reinforcement (4) to the spoiler. Position the washer hose to the spoiler reinforcement and connect the washer hose to the washer nozzle (2).
2. Install the spoiler reinforcement (4) to the outer spoiler and verify the retaining tabs and clips are fully seated.

   Courtesy of CHRYSLER GROUP, LLC

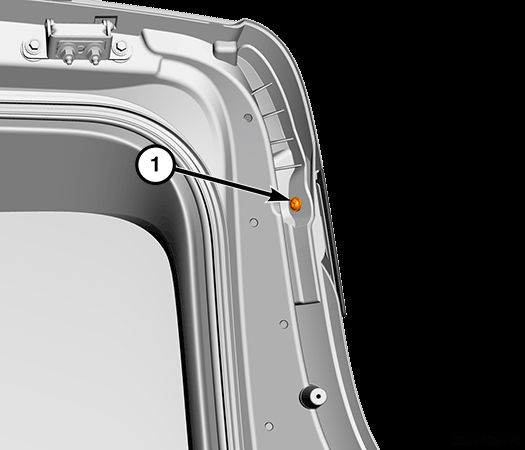

3. Install the side fasteners (1).

   Courtesy of CHRYSLER GROUP, LLC

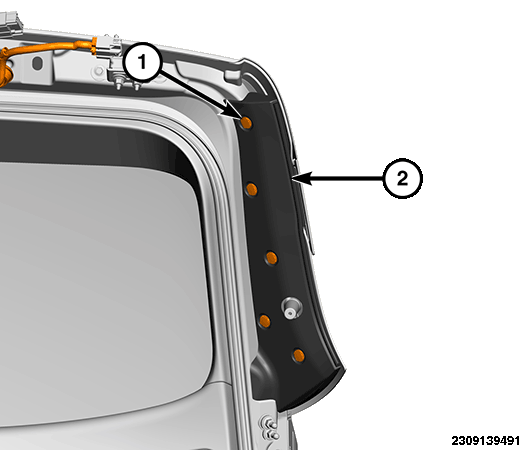

4. Install the pinch sensors (2) and install the push pin fasteners (1).
5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
