Engine Block: FLEXPLATE: Installation

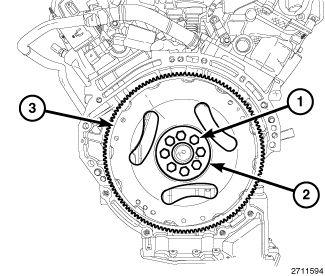

GC0144180Courtesy of CHRYSLER GROUP, LLC
  1. Position the flexplate (3) onto the crankshaft.
  2. Install the bolts (1) hand tight.
  3. Tighten the flexplate retaining bolts to the proper in a criss-cross pattern. Refer to (TORQUE SPECIFICATIONS ).
    CAUTION:

    Do not use an impact socket or a thick walled socket when removing or installing the flexplate retaining bolts, damage to the crankshaft, internal engine or the transmission may occur.

  4. Install the transmission. Refer to 3.2 LITER .
