Sensor, Oil Temperature: Installation

Courtesy of CHRYSLER GROUP, LLC

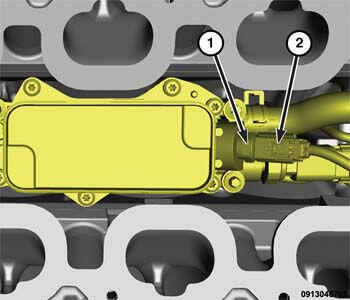

1. Install the oil temperature sensor (1) and tighten to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
2. Connect the oil temperature sensor wire harness connector (2).
3. Install the upper and lower intake manifolds. Refer to MANIFOLD, INTAKE, INSTALLATION .
