Sensor, EGR Temperature: Installation

Courtesy of CHRYSLER GROUP, LLC

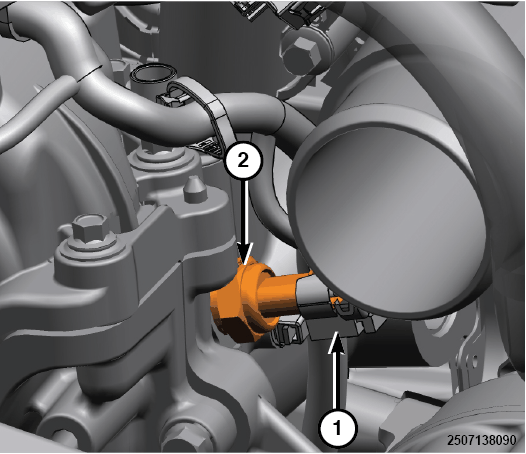

1. Install the EGR temperature sensor (2) and tighten it to the proper torque specifications. Refer to TORQUE SPECIFICATIONS  .
2. Connect the EGR temperature sensor wire harness connector (1).
3. Install the air cleaner hose assembly. Refer to the appropriate service information .
4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
