Damper, Vibration: Installation
WARNING: This page is about a different variant/trim than selected.
- Apply clean engine oil to the vibration damper bolt threads and between the bolt head and washer.

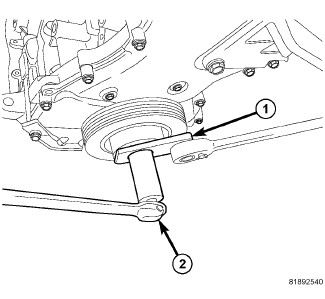

- Install the vibration damper and vibration damper bolt. Use (special tool #9707, Holder, Vibration Damper) (1) and tighten the bolt to the proper
Refer to (TORQUE SPECIFICATION ).
- Install the accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
